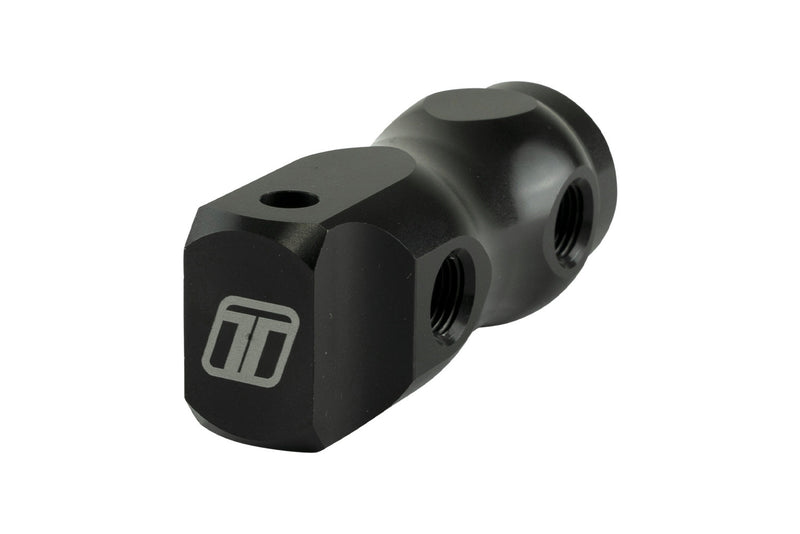

Turbosmart Reference Distribution Block - 5 Port 1/8 NPT
The Turbosmart Reference Distribution Block is a tidy way to remote mount and share engine (MAP) reference with several components such as fuel pressure regulators, MAP sensors, boost gauges, wastegates and brake boosters. Machined from billet 6262-T6 aluminium and black anodised, it shares one 1/4 NPT reference port with four 1/8 NPT outputs, suiting hose tails as well as braided high-pressure fittings.
Note: Installation by a professional is recommended.
What's Included
- Reference distribution block
- Mounting bracket and fasteners
- 3 x 1/8 NPT hose tail fittings (suit 6mm ID hose)
- 3 x 1/8 NPT blanking screws (3/16 Allen key)
Need help choosing the right block? Contact our team at sales@chicaneaustralia.com.au.
Vehicle Compatibility
| Make | Model | Chassis | Engine |
|---|---|---|---|
| Universal | Manifold reference distribution | - | - |
Technical Specifications
| Spec | Value |
|---|---|
| Brand | Turbosmart |
| Ports | 5 (1 x 1/4 NPT + 4 x 1/8 NPT) |
| Material | Billet 6262-T6 aluminium, black anodised |
| Part number | TS-0704-1001 |
