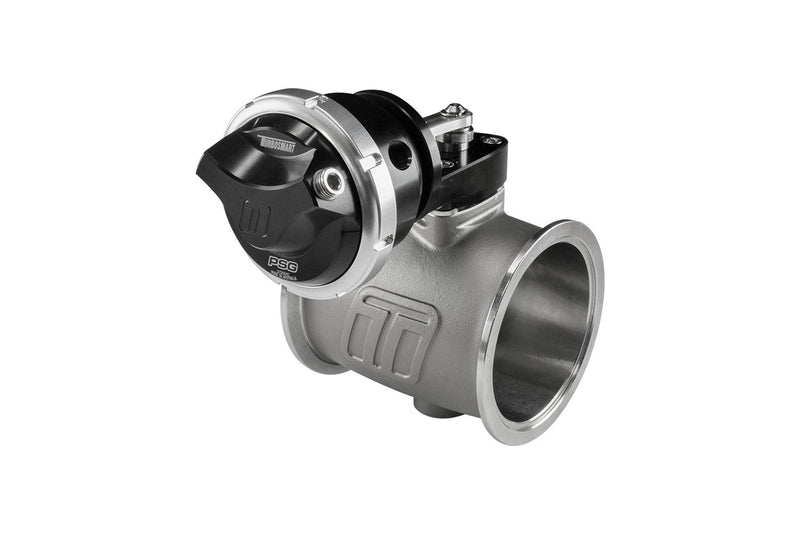

Turbosmart pSG76 Pneumatic StraightGate - 76mm External Wastegate - Pneumatic Actuation
The Turbosmart pSG76 is a 76mm zero-offset butterfly-style external wastegate controlled by a conventional boost-referenced Gen-V actuator. The zero-offset butterfly pivots centrally, so exhaust drive pressure acts equally on both halves and the valve is self-balancing, and the straight-through path flows more than a poppet valve that has to turn the gas 90 degrees. The self-balancing valve gives a tuning window of more than five times the base spring pressure.
Note: Pre-fitted with 6psi springs, with the other springs supplied in the box. The actuator supports single or twin port boost control. Installation by a professional is recommended.
What's Included
- Boost-based pneumatic StraightGate76
- StraightGate76 inlet and outlet flanges
- StraightGate76 inlet and outlet weld flanges
- 6psi springs (pre-installed)
- Additional springs
- 2 x 1/8in NPT hose tail fittings
- 2 x 1/8in NPT blanking plugs
- Turbosmart decal
Need help choosing a wastegate? Contact our team at sales@chicaneaustralia.com.au.
Vehicle Compatibility
| Make | Model | Chassis | Engine |
|---|---|---|---|
| Universal | Custom turbo applications | - | - |
Technical Specifications
| Spec | Value |
|---|---|
| Brand | Turbosmart |
| Series | StraightGate76 pSG76 Pneumatic (boost-based) |
| Valve | 76mm (2.99in) zero-offset butterfly |
| Flow | 723.7 CFM / 20.49 m3 per minute |
| Spring pressure (installed) | 6psi |
| Butterfly and shaft | 630 stainless steel |
| Main body | 347 stainless steel |
| V-band clamps | Heat treated 431 stainless steel |
| Bracket and actuator | 6262 T6 anodised aluminium |
| Linkages and control arm | Nitronic 60 stainless steel |
| Base spring options | 6 - 42 psi |
| Control | Single or twin port boost-based |
| Colour | Black |
| Part number | TS-0567-1762 |
