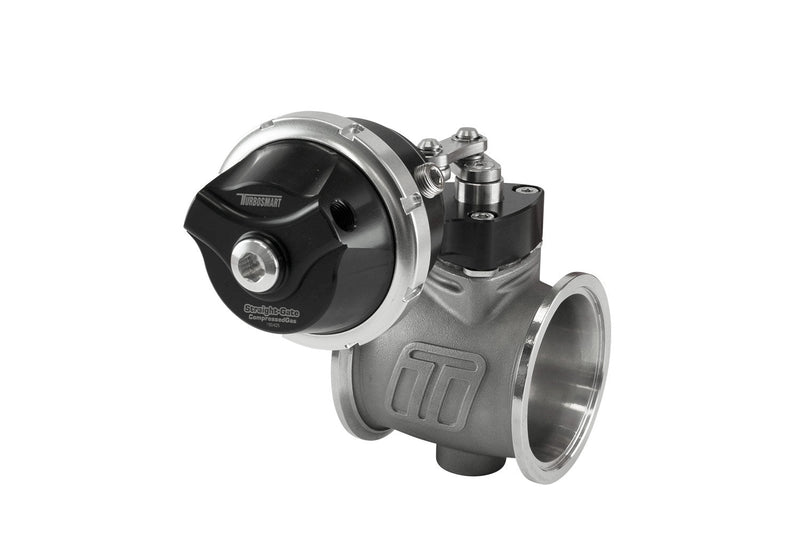

Turbosmart pSG50 CG StraightGate - 50mm External Wastegate - Compressed Gas
The Turbosmart pSG50 CG is a 50mm zero-offset butterfly-style external wastegate with a diaphragm actuator built for CO2 and compressed gas "fill and spill" boost controllers. The zero-offset butterfly pivots centrally, so exhaust drive pressure acts equally on both halves and the valve is self-balancing, and the straight-through path flows more than a poppet valve that has to turn the gas 90 degrees. An inverted high-pressure Nomex diaphragm handles the larger pressure differentials of CO2 and compressed air control.
Note: Set to 7psi base pressure. A CO2 or compressed air supply and a compatible boost controller are required. Installation by a professional is recommended.
Need help choosing a wastegate? Contact our team at sales@chicaneaustralia.com.au.
Vehicle Compatibility
| Make | Model | Chassis | Engine |
|---|---|---|---|
| Universal | Custom turbo applications with CO2 / compressed gas boost control | - | - |
Technical Specifications
| Spec | Value |
|---|---|
| Brand | Turbosmart |
| Series | StraightGate50 pSG50CG Compressed Gas |
| Valve | 50mm (1.97in) zero-offset butterfly |
| Flow | 383.9 CFM / 10.87 m3 per minute |
| Spring pressure (installed) | 7psi |
| Diaphragm | Inverted high-pressure Nomex |
| Butterfly and shaft | 630 stainless steel |
| Main body | 347 stainless steel |
| V-band clamps | Heat treated 431 stainless steel |
| Bracket and actuator | 6262 T6 anodised aluminium |
| Linkages and control arm | Nitronic 60 stainless steel |
| Base spring options | 6 - 42 psi |
| Colour | Black |
| Part number | TS-0565-1242 |
