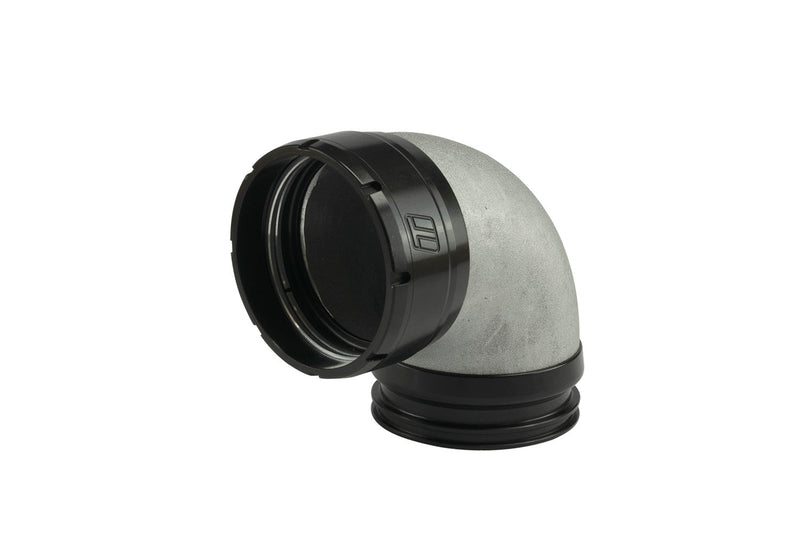

Turbosmart LockSleeve - Turbo Compressor Outlet Adaptor
The Turbosmart LockSleeve is a weld-free compressor outlet adaptor that connects a Turbosmart B-frame or C-frame compressor cover to Vibrant HD clamps, Plazmaman clamps or a hose barb. Two screw-together collar halves compress an internal O-ring against the compressor cover for an airtight seal, while the outer sleeve holds it mechanically - so it performs like a welded joint but can be fitted or removed with basic hand tools.
Note: Choose the size to match your compressor outlet (2.50" or 3.00"), then the outlet style and clamp type to suit your intercooler piping. Replacement O-rings and the collar tool are available separately. Installation by a professional is recommended.
Need help choosing a LockSleeve? Contact our team at sales@chicaneaustralia.com.au.
Vehicle Compatibility
| Make | Model | Chassis | Engine |
|---|---|---|---|
| Universal | Turbosmart TS-1 / TS-2 compressor outlet | - | - |
Technical Specifications
| Spec | Value |
|---|---|
| Brand | Turbosmart |
| Type | Weld-free compressor outlet adaptor |
| Suits | Turbosmart B-Frame and C-Frame compressor covers |
| Outlet sizes | 2.50", 3.00" |
| Styles | Straight, 90 degree elbow |
| Connections | Vibrant HD clamp, Plazmaman Plazmaclamp, hose barb |
| Seal | Internal O-ring |
| Part numbers | TS-199-3019 (2.50" 90 Degree Elbow Vibrant), TS-199-3020 (2.50" 90 Degree Elbow Plazmaclamp), TS-199-3023 (2.50" 90 Degree Elbow Hose Barb), TS-199-3029 (2.50" Straight Vibrant), TS-199-3030 (2.50" Straight Plazmaclamp), TS-199-3037 (3.00" 90 Degree Elbow Vibrant / Plazmaclamp), TS-199-3040 (3.00" 90 Degree Elbow Hose Barb), TS-199-3041 (3.00" Straight Vibrant / Plazmaclamp) |
