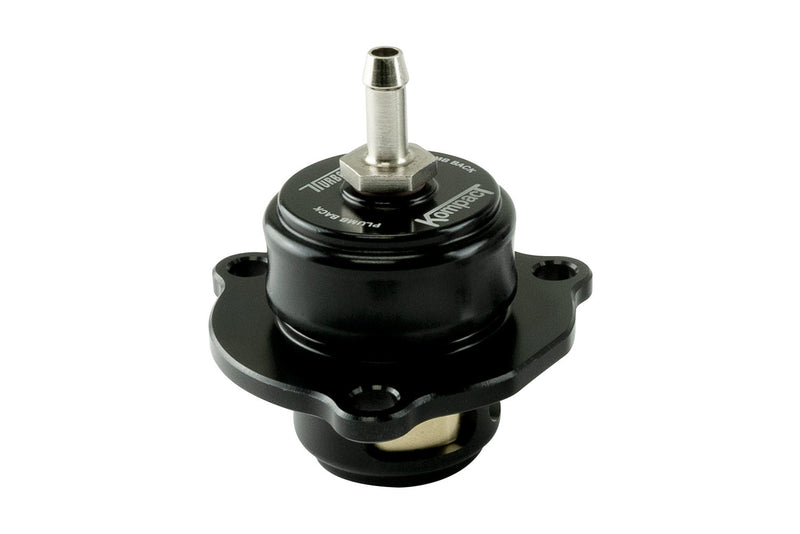

Turbosmart Kompact Shortie Plumb Back Blow Off Valve - Ford Focus ST (LW/LZ) / XR5 Turbo / RS (LV) / Falcon EcoBoost (FG)
The Turbosmart Kompact Shortie takes Turbosmart's 28mm positive-sealing piston technology and packages it for the compact compressor-cover mounted bypass valves used on BorgWarner EFR and KKK turbochargers and many Ford engines, including the Focus ST (LW / LZ), Focus XR5 Turbo and RS (LV) and FG Falcon EcoBoost. It bolts on in place of the plastic factory diverter valve, whose un-reinforced diaphragm can crack and leak with age, heat and extra boost.
Note: Boost-Balance design means the more boost the valve sees, the better it seals. Plumb Back is fully recirculating. Installation by a professional is recommended.
What's Included
- Model-specific Kompact valve
- Straight and banjo hose tail nipples
- Stainless steel fasteners
- Turbosmart decal
Need help confirming fitment? Contact our team at sales@chicaneaustralia.com.au.
Vehicle Compatibility
| Make | Model | Chassis | Engine |
|---|---|---|---|
| Ford | Focus ST | LW | 2.0L EcoBoost Turbo |
| Ford | Focus ST | LZ | 2.0L EcoBoost Turbo |
| Ford | Focus 1.5 EcoBoost | LZ | 1.5L EcoBoost Turbo |
| Ford | Focus XR5 Turbo | LS/LT/LV | Duratec 2.5L Turbo 5-cyl |
| Ford | Focus RS | LV | Duratec 2.5L Turbo 5-cyl |
| Ford | Falcon EcoBoost | FG MkII / FG X | 2.0L EcoBoost Turbo |
| Ford | F-150 EcoBoost (2011-2012) | P415 | 3.5L EcoBoost Twin Turbo V6 |
| Opel | Corsa OPC | D | 1.6L Turbo |
| Porsche | 911 Turbo / GT2 | 997 | 3.6L Twin Turbo flat-six |
| Volvo | C30 T5 | - | B5254T 2.5L Turbo 5-cyl |
| Volvo | C70 T5 | 2nd gen | B5254T 2.5L Turbo 5-cyl |
| Volvo | S40 / V50 T5 | 2nd gen | B5254T 2.5L Turbo 5-cyl |
| Volvo | S60 / V70 T5 | 1st gen / 2nd gen | B5254T 2.5L Turbo 5-cyl |
| Universal | BorgWarner EFR and KKK compressor-cover bypass valve flange | - | - |
Technical Specifications
| Spec | Value |
|---|---|
| Brand | Turbosmart |
| Part numbers | TS-0203-1261 |
| Series | Kompact Shortie |
| Style | Plumb Back / recirculating |
| Piston | 28mm positive-sealing |
| Flow potential | Over 600 hp |
| Construction | Billet aluminium, high-temperature O-rings |
| Position | Compressor-cover mounted, replaces factory diverter valve |
| Also available as Dual Port | TS-0203-1061 |
