Turbosmart Kompact EM Plumb Back Blow Off Valve VR9 - BMW M135i (F20) / M235i (F22) / 335i (F30) / 435i (F32) - N55

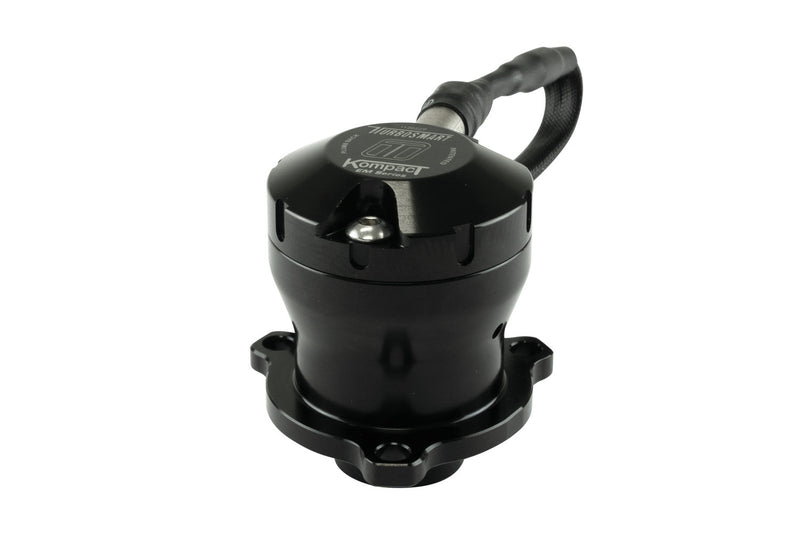

The Turbosmart Kompact EM VR9 is a plug-and-play replacement for the factory diverter valve on the BMW M135i (F20), M235i (F22), 335i (F30) and 435i (F32), along with other N55 turbo six and N13 1.6 turbo BMW models. It combines a billet aluminium valve body with an onboard solenoid and internal pressure control channels, so it plugs straight into the factory connector and bolts on in place of the OEM valve - no adaptors, reference hoses or separate solenoids are needed. Turbosmart's Boost-Balance design and a positive-seal O-ring on the piston face mean the more boost it sees, the better it seals.
Note: Plumb Back recirculates all vented air back into the intake for quiet, OEM-style operation with the factory ECU. Not suitable for N63 or S63TU engines; the M2 (N55) uses VR11. Installation by a professional is recommended.
What's Included
- Kompact EM valve
- 3 x M6 fasteners
- Turbosmart decal
Need help confirming fitment? Contact our team at sales@chicaneaustralia.com.au.
Vehicle Compatibility
| Make | Model | Chassis | Engine |
|---|---|---|---|
| BMW | M135i | F20/F21 | N55 3.0L Turbo |
| BMW | M235i | F22/F23 | N55 3.0L Turbo |
| BMW | 335i | F30/F31/F34 | N55 3.0L Turbo |
| BMW | 435i | F32/F33/F36 | N55 3.0L Turbo |
| BMW | 135i | E82/E88 LCI (2010+) | N55 3.0L Turbo |
| BMW | 335i | E90/E92/E93 LCI (2010+) | N55 3.0L Turbo |
| BMW | 535i | F10/F11 | N55 3.0L Turbo |
| BMW | 640i | F06/F12/F13 | N55 3.0L Turbo |
| BMW | 740i | F01 LCI (2012+) | N55 3.0L Turbo |
| BMW | X3 xDrive35i | F25 | N55 3.0L Turbo |
| BMW | X4 xDrive35i | F26 | N55 3.0L Turbo |
| BMW | 116i / 118i | F20 | N13 1.6L Turbo |
| BMW | 316i | F30 | N13 1.6L Turbo |
Technical Specifications
| Spec | Value |
|---|---|
| Brand | Turbosmart |
| Part numbers | TS-0223-1292 |
| Series | Kompact EM |
| Valve | VR9 |
| Style | Plumb Back (fully recirculating) |
| Construction | Billet aluminium, high-temperature O-rings |
| Control | Integrated high-temperature solenoid and pressure control - plugs into the factory connector |
| Position | Replaces factory diverter valve |
| Features | Boost-Balance valve design - the higher the boost, the better it seals |
| Also available as Dual Port | TS-0223-1092 |
| Service parts | Solenoid TS-0223-3005; O-ring kit TS-0223-3010 |
