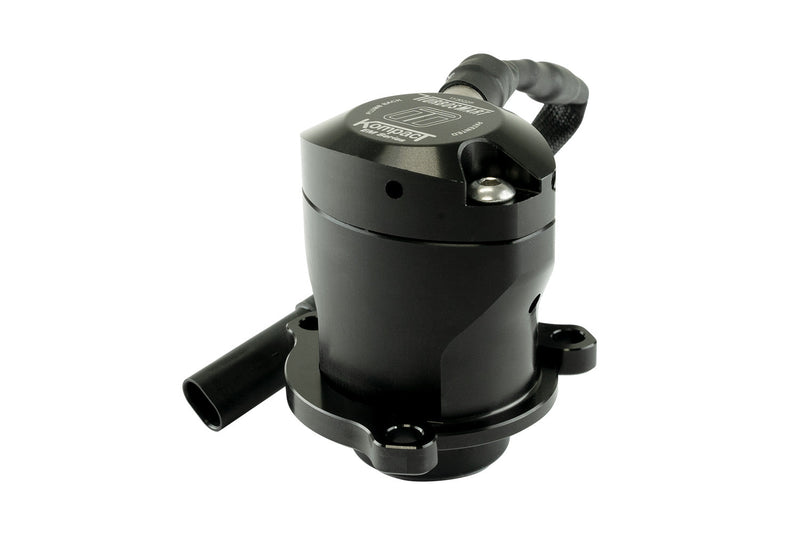

Turbosmart Kompact EM Plumb Back Blow Off Valve VR23 - BMW 125i (F20) / 228i (F22) / 328i (F30) / 428i (F32) - N20
The Turbosmart Kompact EM VR23 is a plug-and-play replacement for the factory diverter valve on the N20-engined BMW 125i (F20), 228i (F22), 328i (F30) and 428i (F32), along with other N20 2.0 turbo 1, 2, 3, 4, 5 Series, X1, X3, X4 and Z4 models. It combines a billet aluminium valve body with an onboard solenoid and internal pressure control channels, so it plugs straight into the factory connector and bolts on in place of the OEM valve - no adaptors, reference hoses or separate solenoids are needed. Turbosmart's Boost-Balance design and a positive-seal O-ring on the piston face mean the more boost it sees, the better it seals.
Note: Plumb Back recirculates all vented air back into the intake for quiet, OEM-style operation with the factory ECU. Suits N20 engines with both pneumatic and electronically actuated turbos. Later B46 / B48 engined models are not covered. Installation by a professional is recommended.
What's Included
- Kompact EM valve
- 3 x M6 fasteners
- Turbosmart decal
Need help confirming fitment? Contact our team at sales@chicaneaustralia.com.au.
Vehicle Compatibility
| Make | Model | Chassis | Engine |
|---|---|---|---|
| BMW | 125i | F20/F21 | N20 2.0L Turbo |
| BMW | 220i / 228i | F22/F23 | N20 2.0L Turbo |
| BMW | 320i / 328i | F30/F31/F34 | N20 2.0L Turbo |
| BMW | 420i / 428i | F32/F33/F36 | N20 2.0L Turbo |
| BMW | 520i / 528i | F10/F11 | N20 2.0L Turbo |
| BMW | X1 sDrive20i / xDrive28i | E84 | N20 2.0L Turbo |
| BMW | X3 xDrive20i / xDrive28i | F25 | N20 2.0L Turbo |
| BMW | X4 xDrive20i / xDrive28i | F26 | N20 2.0L Turbo |
| BMW | Z4 sDrive20i / sDrive28i | E89 | N20 2.0L Turbo |
Technical Specifications
| Spec | Value |
|---|---|
| Brand | Turbosmart |
| Part numbers | TS-0223-1250 |
| Series | Kompact EM |
| Valve | VR23 |
| Style | Plumb Back (fully recirculating) |
| Construction | Billet aluminium, high-temperature O-rings |
| Control | Integrated high-temperature solenoid and pressure control - plugs into the factory connector |
| Position | Replaces factory diverter valve |
| Features | Boost-Balance valve design - the higher the boost, the better it seals |
| Also available as Dual Port | TS-0223-1050 |
| Service parts | Solenoid TS-0223-3002; O-ring kit TS-0223-3010 |
