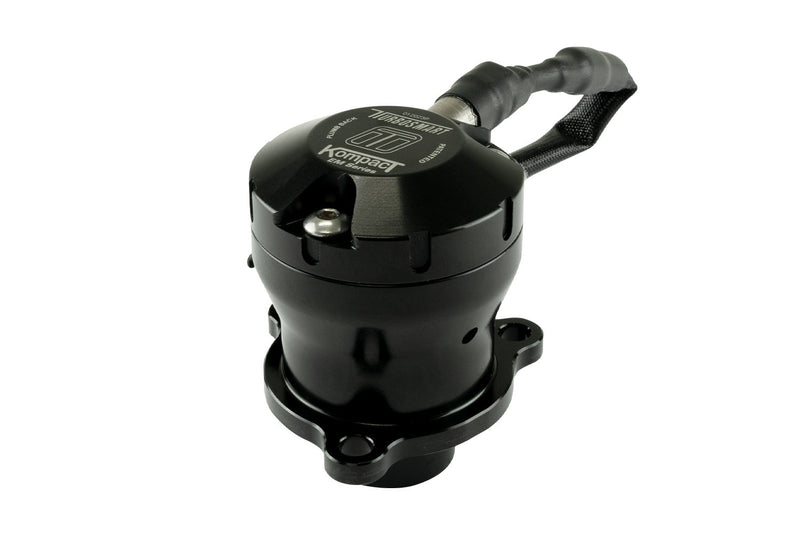

Turbosmart Kompact EM Plumb Back Blow Off Valve VR10 - Mini Cooper S / JCW (R55/R56/R57) / Peugeot 308 / RCZ - N14 / N18
The Turbosmart Kompact EM VR10 is a plug-and-play replacement for the factory diverter valve on the second-generation Mini Cooper S and John Cooper Works (R55 / R56 / R57) with the N14 or N18 engine, and on 1.6 THP Peugeot and Citroen models such as the 308 and RCZ. It combines a billet aluminium valve body with an onboard solenoid and internal pressure control channels, so it plugs straight into the factory connector and bolts on in place of the OEM valve - no adaptors, reference hoses or separate solenoids are needed. Turbosmart's Boost-Balance design and a positive-seal O-ring on the piston face mean the more boost it sees, the better it seals.
Note: Plumb Back recirculates all vented air back into the intake for quiet, OEM-style operation with the factory ECU. Suits the 1.6 turbo Prince engine (N14 / N18 in Mini). Installation by a professional is recommended.
What's Included
- Kompact EM valve
- 3 x M6 fasteners
- Turbosmart decal
Need help confirming fitment? Contact our team at sales@chicaneaustralia.com.au.
Vehicle Compatibility
| Make | Model | Chassis | Engine |
|---|---|---|---|
| Mini | Cooper S / John Cooper Works | R56 | N14 / N18 1.6L Turbo |
| Mini | Cooper S / John Cooper Works Convertible | R57 | N14 / N18 1.6L Turbo |
| Mini | Clubman Cooper S / John Cooper Works | R55 | N14 / N18 1.6L Turbo |
| Peugeot | 207 GT / GTi | A7 | Prince EP6DT 1.6L THP Turbo |
| Peugeot | 308 GT / GTi 1.6 THP | T7 | Prince EP6DT / EP6CDT 1.6L THP Turbo |
| Peugeot | RCZ 1.6 THP | - | Prince EP6CDT 1.6L THP Turbo |
| Peugeot | 3008 / 5008 1.6 THP | - | Prince EP6CDT 1.6L THP Turbo |
| Peugeot | 508 1.6 THP | - | Prince EP6CDT 1.6L THP Turbo |
| Citroen | DS3 DSport / DS4 1.6 THP | - | Prince EP6CDT 1.6L THP Turbo |
| Citroen | C4 / C4 Picasso 1.6 THP | - | Prince EP6CDT 1.6L THP Turbo |
Technical Specifications
| Spec | Value |
|---|---|
| Brand | Turbosmart |
| Part numbers | TS-0223-1293 |
| Series | Kompact EM |
| Valve | VR10 |
| Style | Plumb Back (fully recirculating) |
| Construction | Billet aluminium, high-temperature O-rings |
| Control | Integrated high-temperature solenoid and pressure control - plugs into the factory connector |
| Position | Replaces factory diverter valve |
| Features | Boost-Balance valve design - the higher the boost, the better it seals |
| Also available as Dual Port | TS-0223-1093 |
| Service parts | Solenoid TS-0223-3006; O-ring kit TS-0223-3011 |
