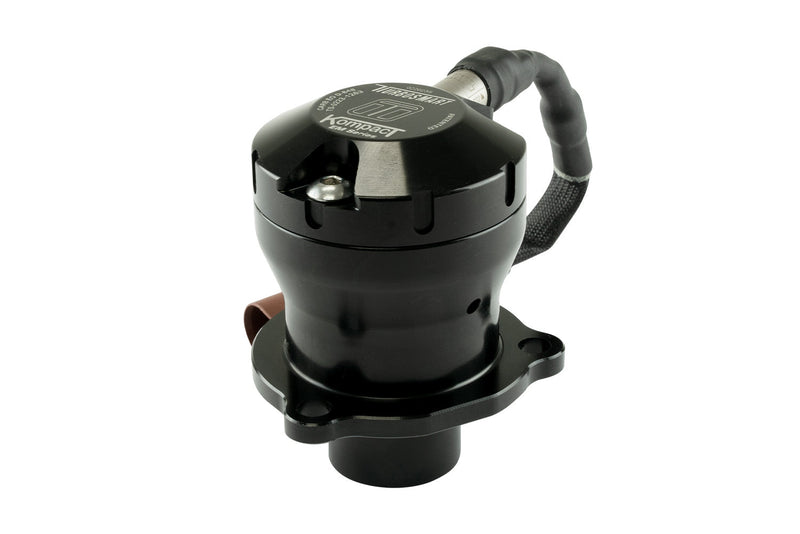

Turbosmart Kompact EM Blow Off Valve Kit VR30 - Audi RS6 / RS7 (C8) / S8 (D5) / Lamborghini Urus - Plumb Back 4.0 TFSI V8
The Turbosmart Kompact EM VR30 is a plug-and-play replacement for the factory diverter valve on the twin-turbo 4.0 TFSI V8 Audi RS6 and RS7 (C8) and S8 (D5), plus the V8 Porsche Panamera, Bentley Continental GT and Lamborghini Urus. It combines a billet aluminium valve body with an onboard solenoid and internal pressure control channels, so it plugs straight into the factory connector and bolts on in place of the OEM valve - no adaptors, reference hoses or separate solenoids are needed. Turbosmart's Boost-Balance design and a positive-seal O-ring on the piston face mean the more boost it sees, the better it seals.
Note: Plumb Back recirculates all vented air back into the intake for quiet, OEM-style operation with the factory ECU. Supplied as a pair of valves for the twin-turbo V8. Installation by a professional is recommended.
What's Included
- 2 x Kompact EM valves
- 3 x M6 fasteners
- Turbosmart decal
Need help confirming fitment? Contact our team at sales@chicaneaustralia.com.au.
Vehicle Compatibility
| Make | Model | Chassis | Engine |
|---|---|---|---|
| Audi | RS6 | C8 | 4.0L TFSI Twin Turbo V8 |
| Audi | RS7 | C8 | 4.0L TFSI Twin Turbo V8 |
| Audi | S8 | D5 | 4.0L TFSI Twin Turbo V8 |
| Porsche | Panamera 4S / GTS / Turbo | 971 | 4.0L Twin Turbo V8 |
| Bentley | Continental GT V8 | 3S | 4.0L Twin Turbo V8 |
| Lamborghini | Urus | - | 4.0L Twin Turbo V8 |
Technical Specifications
| Spec | Value |
|---|---|
| Brand | Turbosmart |
| Part numbers | TS-0223-1264 |
| Series | Kompact EM |
| Valve | VR30 |
| Style | Plumb Back (fully recirculating) |
| Quantity | 2 valves |
| Construction | Billet aluminium, high-temperature O-rings |
| Control | Integrated high-temperature solenoid and pressure control - plugs into the factory connector |
| Position | Replaces factory diverter valve |
| Features | Boost-Balance valve design - the higher the boost, the better it seals |
| Also available as Dual Port | TS-0223-1064 |
| Service parts | Solenoid TS-0223-3001; O-ring kit TS-0223-3010 |
No instructions available for this product.
