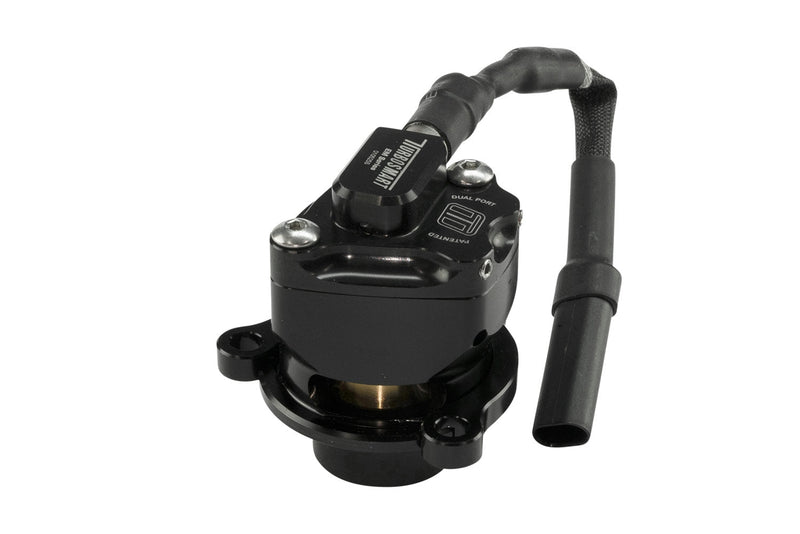

Turbosmart Kompact EM Dual Port Blow Off Valve VR33 - Mercedes-Benz C-Class C200 / C300 (W206) - M254
The Turbosmart Kompact EM VR33 is a plug-and-play replacement for the factory diverter valve on the Mercedes-Benz C-Class (W206) with the M254 four-cylinder turbo engine. It combines a billet aluminium valve body with an onboard solenoid and internal pressure control channels, so it plugs straight into the factory connector and bolts on in place of the OEM valve - no adaptors, reference hoses or separate solenoids are needed. Turbosmart's Boost-Balance design and a positive-seal O-ring on the piston face mean the more boost it sees, the better it seals.
Note: Dual Port vents part of the charge to atmosphere for the Turbosmart sound while recirculating the rest, keeping the factory ECU happy. Suits the M254 four-cylinder turbo engine in the W206 C-Class. Installation by a professional is recommended.
Need help confirming fitment? Contact our team at sales@chicaneaustralia.com.au.
Vehicle Compatibility
| Make | Model | Chassis | Engine |
|---|---|---|---|
| Mercedes-Benz | C-Class C200 / C300 | W206 | M254 1.5L / 2.0L Turbo |
Technical Specifications
| Spec | Value |
|---|---|
| Brand | Turbosmart |
| Part numbers | TS-0223-1056 |
| Series | Kompact EM |
| Valve | VR33 |
| Style | Dual Port (vent to atmosphere / recirculating) |
| Construction | Billet aluminium, high-temperature O-rings |
| Control | Integrated high-temperature solenoid and pressure control - plugs into the factory connector |
| Position | Replaces factory diverter valve |
| Features | Boost-Balance valve design - the higher the boost, the better it seals |
| Also available as Plumb Back | TS-0223-1256 |
| Service parts | Solenoid TS-0223-3002; O-ring kit TS-0223-3010 |
