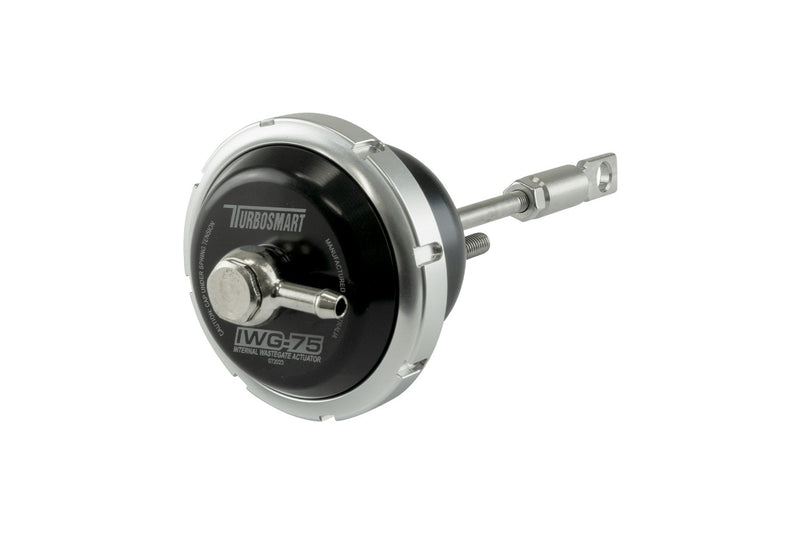

Turbosmart IWG75 Wastegate Actuator - Garrett GT22 - 5psi
The Turbosmart IWG75 is an upgraded internal wastegate actuator for the Garrett GT22 turbocharger. A larger effective diaphragm area and revised springs give it a higher working ratio for earlier, more sustained boost and a broader torque curve.
Note: Running a higher base spring pressure than factory is likely to require ECU tuning and recalibration. Installation by a professional is recommended.
What's Included
- IWG75 wastegate actuator
- Spring pre-fitted to the listed pressure
- Fasteners and swivel hose barb
Need help choosing an actuator? Contact our team at sales@chicaneaustralia.com.au.
Vehicle Compatibility
| Make | Model | Chassis | Engine |
|---|---|---|---|
| Universal | Garrett GT22 turbocharger | - | - |
Technical Specifications
| Spec | Value |
|---|---|
| Brand | Turbosmart |
| Series | IWG75 |
| Diaphragm | Silicone Nomex |
| Construction | Billet aluminium |
| Rod and clevis | Stainless steel |
| Spring adjustment | Turbosmart locking collar |
| Optional spring range | 3 - 26psi |
| Turbo | Garrett GT22 |
| Spring pressure | 5psi |
| Part number | TS-0625-2052 |
