Turbosmart IWG75 Wastegate Actuator - Ford Focus XR5 Turbo (LS/LT/LV) / Mondeo XR5 Turbo (MA/MB) / Kuga (TE) - 7psi

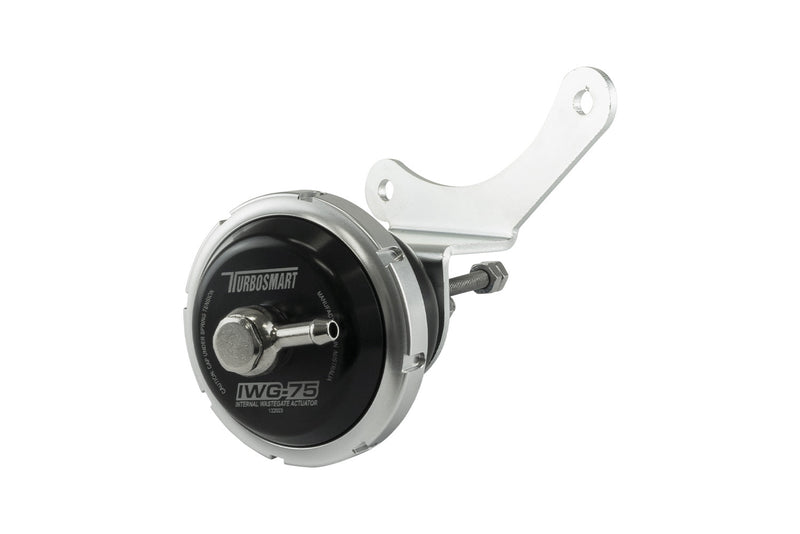

The Turbosmart IWG75 is an upgraded internal wastegate actuator for the BorgWarner K04 turbocharger on Ford's 2.5 litre five-cylinder turbo engine, as fitted to the Focus XR5 Turbo (LS/LT/LV), Mondeo XR5 Turbo (MA/MB) and Kuga (TE). A larger effective diaphragm area and revised springs give it a higher working ratio than the factory actuator, so peak boost arrives earlier in the rev range and is held for longer, giving a broader boost and torque curve.
Note: Does not suit the Focus RS (Mk2) - Turbosmart lists a separate actuator for that model. Running a higher base spring pressure than factory is likely to require ECU tuning and recalibration. Installation by a professional is recommended.
What's Included
- IWG75 wastegate actuator
- Spring pre-fitted to the listed pressure
- Fasteners and swivel hose barb
Need help confirming fitment? Contact our team at sales@chicaneaustralia.com.au.
Vehicle Compatibility
| Make | Model | Chassis | Engine |
|---|---|---|---|
| Ford | Focus XR5 Turbo | LS/LT | Duratec 2.5L 5-Cyl Turbo (K04) |
| Ford | Focus XR5 Turbo | LV | Duratec 2.5L 5-Cyl Turbo (K04) |
| Ford | Mondeo XR5 Turbo | MA/MB | Duratec 2.5L 5-Cyl Turbo (K04) |
| Ford | Kuga 2.5 Turbo | TE | Duratec 2.5L 5-Cyl Turbo (K04) |
Technical Specifications
| Spec | Value |
|---|---|
| Brand | Turbosmart |
| Series | IWG75 |
| Diaphragm | Silicone Nomex |
| Construction | Billet aluminium |
| Rod and clevis | Stainless steel |
| Spring adjustment | Turbosmart locking collar |
| Optional spring range | 3 - 26psi |
| Spring pressure | 7psi |
| Part number | TS-0622-2072 |
