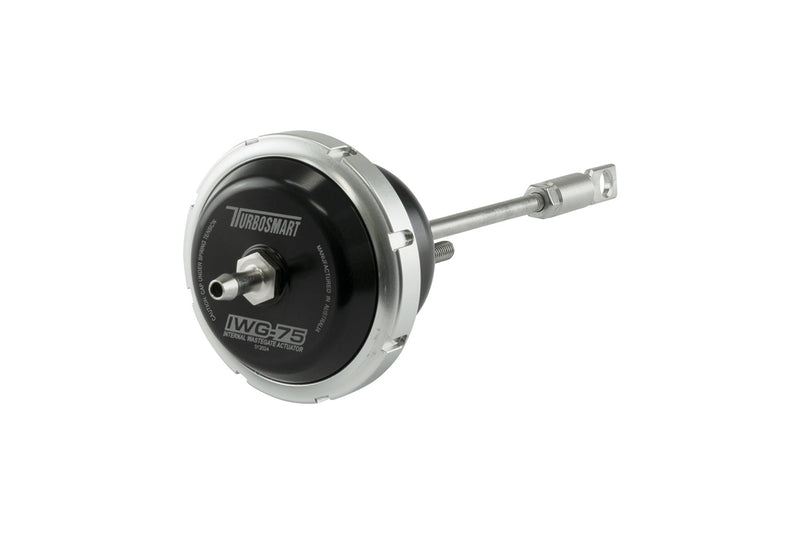

Turbosmart IWG75 Wastegate Actuator - Ford Focus RS (LZ)
The Turbosmart IWG75 is an upgraded internal wastegate actuator for the factory turbocharger on the Ford Focus RS (LZ). A larger effective diaphragm area and revised springs give it a higher working ratio than the factory actuator, so peak boost arrives earlier in the rev range and is held for longer, giving a broader boost and torque curve.
Note: The 12psi version is a direct replacement for the factory actuator; all other spring pressures require ECU tuning/recalibration. Installation by a professional is recommended.
What's Included
- IWG75 wastegate actuator
- Spring pre-fitted to the listed pressure
- Fasteners and swivel hose barb
Need help confirming fitment? Contact our team at sales@chicaneaustralia.com.au.
Vehicle Compatibility
| Make | Model | Chassis | Engine |
|---|---|---|---|
| Ford | Focus RS | LZ | 2.3L EcoBoost Turbo |
Technical Specifications
| Spec | Value |
|---|---|
| Brand | Turbosmart |
| Series | IWG75 |
| Diaphragm | Silicone Nomex |
| Construction | Billet aluminium |
| Rod and clevis | Stainless steel |
| Spring adjustment | Turbosmart locking collar |
| Optional spring range | 3 - 26psi |
| Turbo | Factory turbocharger |
| Part numbers | TS-0622-9122 (12psi), TS-0622-9142 (14psi) |
