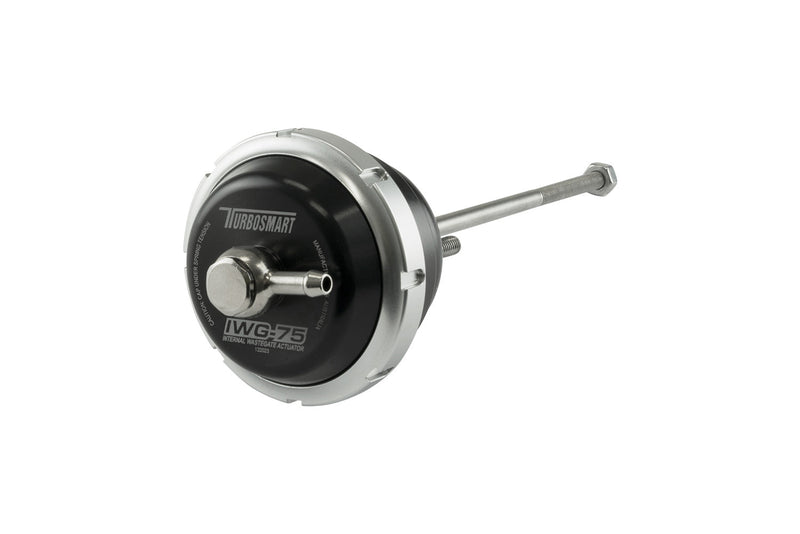

Turbosmart IWG75 Twin Port Wastegate Actuator - Universal UNF - 14psi
The Turbosmart IWG75 Twin Port Universal is an upgraded internal wastegate actuator with a 150mm long 1/4in UNF threaded rod, for fitting to a wide range of turbochargers. Its second pressure port allows reference to either side of the diaphragm for a wider boost control window.
Note: Some fabrication is likely, including extra hardware such as a clevis and bracket. Running a higher base spring pressure than factory is likely to require ECU tuning and recalibration. Installation by a professional is recommended.
What's Included
- IWG75 Twin Port wastegate actuator
- Spring pre-fitted to the listed pressure
- Fasteners and swivel hose barb
Need help choosing an actuator? Contact our team at sales@chicaneaustralia.com.au.
Vehicle Compatibility
| Make | Model | Chassis | Engine |
|---|---|---|---|
| Universal | Custom turbo applications | - | - |
Technical Specifications
| Spec | Value |
|---|---|
| Brand | Turbosmart |
| Series | IWG75 Twin Port |
| Diaphragm | Silicone Nomex |
| Construction | Billet aluminium |
| Rod and clevis | Stainless steel |
| Spring adjustment | Turbosmart locking collar |
| Optional spring range | 3 - 26psi |
| Rod | 150mm, 1/4in UNF thread |
| Spring pressure | 14psi |
| Part number | TS-0681-6142 |
