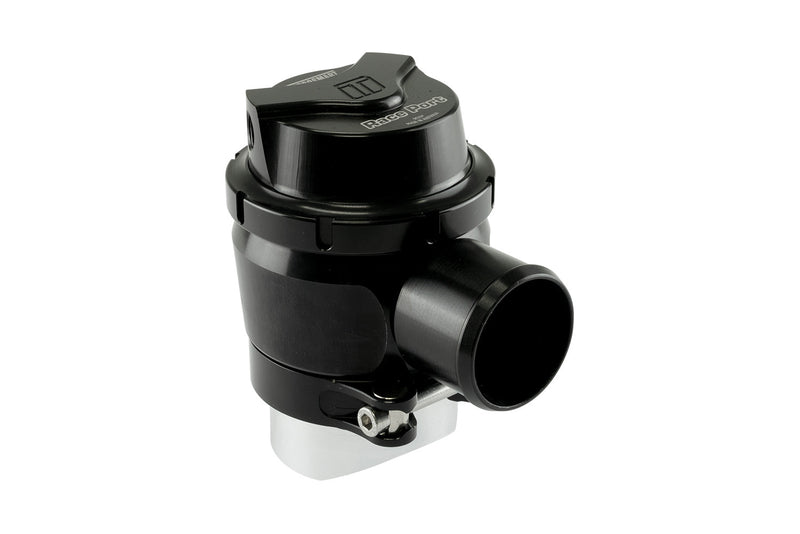

Turbosmart Gen-V RacePort PlumBack Valve - Female Flange Sleeper
The Turbosmart GenV RacePort PlumBack is a recirculating version of the RacePort, built on the same lightweight 50mm platform but returning vented air to the intake instead of venting to atmosphere. It suits engine bays that need a high-flowing diverter / bypass valve with a low profile, and comes in the understated Sleeper finish.
Note: This is the peer / female-flange version for fitment to non-Turbosmart flanges. The standard valve ships with the blue -18 to -14 inHg spring; the supercharger version uses the pink 0 to -4 inHg spring. Installation by a professional is recommended.
What's Included
- GenV RacePort PlumBack valve (female flange)
- 1/8" NPT reference fittings
- V-band assembly
- Spring pre-installed to suit the version selected
- Turbosmart decal
Need help choosing a blow off valve? Contact our team at sales@chicaneaustralia.com.au.
Vehicle Compatibility
| Make | Model | Chassis | Engine |
|---|---|---|---|
| Universal | Peer / non-Turbosmart female BOV flanges | - | - |
Technical Specifications
| Spec | Value |
|---|---|
| Brand | Turbosmart |
| Series | GenV RacePort PlumBack |
| Inlet | 2.0" / 50mm V-band |
| Recirculation fitting | 38mm |
| Construction | Billet 6000 series aluminium |
| Valve guide and stem | Mil-spec hard anodised |
| Diaphragm | High-temperature mil-spec silicone Nomex |
| Reference ports | Twin 1/8" NPT |
| Clamp | Quick-release aluminium V-band |
| Features | Turbosmart locking collar; Boost-Balance design; positive sealing valve seat |
| Options | Hall effect position sensor cap upgrade available separately |
| Colour | Sleeper |
| Flange | Female (peer-style fitment) |
| Installed spring | Standard: blue, -18 to -14 inHg; Supercharger: pink, 0 to -4 inHg |
| Part numbers | TS-0204-1425 (Standard -18 to -14 inHg), TS-0204-1435 (Supercharger -4 inHg) |
No instructions available for this product.
