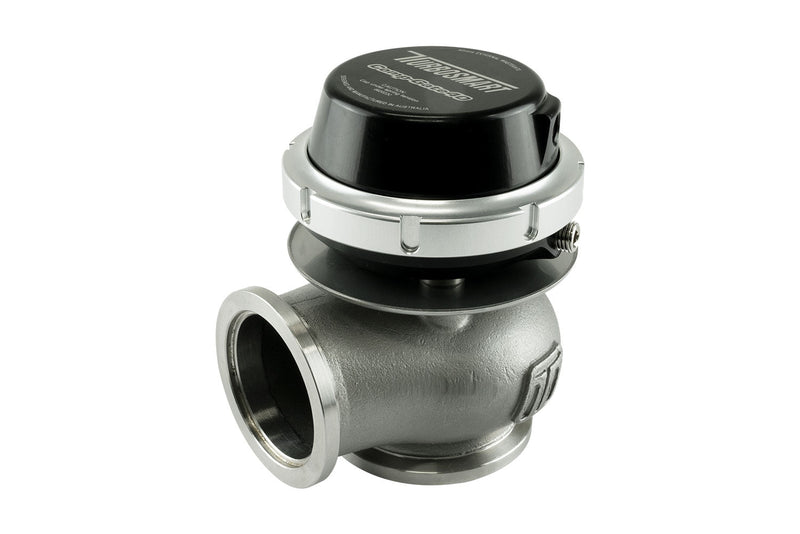

Turbosmart Gen4 CompGate40 - 40mm External Wastegate
The Turbosmart Gen4 CompGate40 is a 40mm V-band external wastegate aimed at street performance builds rather than motorsport. It is Australian-made, hand assembled and individually tested, pairing a cast stainless steel body with an aluminium actuator housing and Turbosmart's locking collar design.
Note: The V-band inlet and outlet suit 40mm peer fitment. Choose a 7psi or 14psi base spring; other springs from 3 to 26psi are available separately. Installation by a professional is recommended.
What's Included
- Gen4 external wastegate (spring pre-fitted to the selected pressure)
- Gen4 stainless steel valve seat
- Gen4 V-band clamps
- Gen4 inlet and outlet weld flanges
- Locking collar tool
- 1/16in NPT blanking plugs
- 1/16in (5mm) hose nipples
Need help choosing a wastegate? Contact our team at sales@chicaneaustralia.com.au.
Vehicle Compatibility
| Make | Model | Chassis | Engine |
|---|---|---|---|
| Universal | Custom turbo applications | - | - |
Technical Specifications
| Spec | Value |
|---|---|
| Brand | Turbosmart |
| Series | Gen4 WG40 CompGate40 |
| Valve diameter | 40mm |
| Mounting | V-band inlet and outlet (40mm peer fitment) |
| Body | Cast stainless steel |
| Actuator housing | Aluminium |
| Valve | Solid one-piece stainless steel |
| Diaphragm | High-temp silicone with Nomex |
| Reference ports | Twin 1/16in NPT |
| Spring range | 3 - 26 psi (optional springs) |
| Fuel | Suits pump fuel and E85 applications |
| Colour | Black |
| Part numbers | TS-0505-1006 (7psi), TS-0505-1010 (14psi) |
