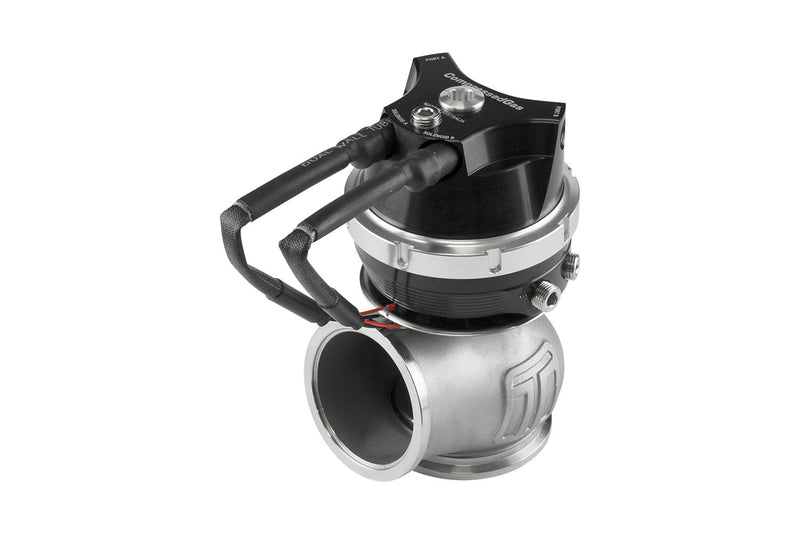

Turbosmart Gen-V ProGate50 CG Solenoid - 50mm External Wastegate - Compressed Gas
The Turbosmart Gen-V ProGate50 CG Solenoid is a 50mm compressed gas external wastegate with the boost control hardware built in. The spill and fill control solenoids and the dome pressure sensor normally needed for CO2 boost control are integrated into the wastegate cap, and the inverted diaphragm is designed for high-pressure CO2 or compressed air and large pressure differentials.
Note: Set to 7psi base pressure. A CO2 or compressed air supply and a suitable controller or ECU strategy are required. A position sensor is available separately. Installation by a professional is recommended.
Need help choosing a wastegate? Contact our team at sales@chicaneaustralia.com.au.
Vehicle Compatibility
| Make | Model | Chassis | Engine |
|---|---|---|---|
| Universal | Custom turbo applications with CO2 / compressed gas boost control | - | - |
Technical Specifications
| Spec | Value |
|---|---|
| Brand | Turbosmart |
| Series | Gen-V WG50CG ProGate50 Compressed Gas (Solenoid) |
| Valve diameter | 50mm |
| Mounting | 50mm V-band |
| Spring pressure (installed) | 7psi |
| Control | Integrated spill and fill solenoids and dome pressure sensor in cap |
| Main body | High-temp 347 stainless steel |
| Valve guide | Nitronic 60 |
| Springs | 17-7 PH stainless steel |
| Reference ports | 1/8in NPT |
| Diaphragm | Inverted, for high-pressure CO2 / compressed air |
| Clamps | Strap-type V-band |
| Features | Clockable actuator housing; optional actuator liquid cooling; optional position sensor |
| Colour | Black |
| Part number | TS-0554-1252 |
