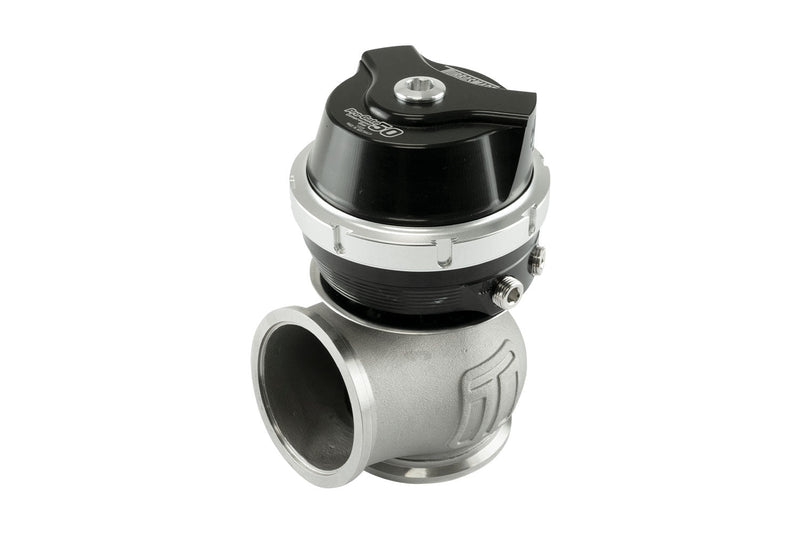

Turbosmart Gen-V ProGate50 CG Full Range - 50mm External Wastegate - Compressed Gas
The Turbosmart Gen-V ProGate50 CG is a 50mm external wastegate for boost control strategies that actively pressurise the top chamber, such as CO2 drag racing, rally and compressed air systems. It uses an inverted diaphragm designed for high-pressure CO2 or compressed air and large top-to-bottom pressure differentials, giving a much wider tuning window than a conventional actuator.
Note: This is the Full Range (HP) CG version, set to 7psi with base spring options from 3 to 26psi. It uses its own Full Range actuator cap and sensor cap, so check spare part numbers before ordering caps. A position sensor is available separately. Installation by a professional is recommended.
What's Included
- Gen-V ProGate50 CG Full Range wastegate unit
- Spring set: 3, 5, 7 and 14psi (7psi installed)
- Locking collar tool
- Gen-V SS316 valve seat
- Strap-type V-band clamps
- Inlet and outlet weld flanges
- Hose tail and blank fitting kit
- Turbosmart decal
Need help choosing a wastegate? Contact our team at sales@chicaneaustralia.com.au.
Vehicle Compatibility
| Make | Model | Chassis | Engine |
|---|---|---|---|
| Universal | Custom turbo applications with CO2 / compressed gas boost control | - | - |
Technical Specifications
| Spec | Value |
|---|---|
| Brand | Turbosmart |
| Series | Gen-V WG50CG ProGate50 Compressed Gas Full Range (HP) |
| Valve diameter | 50mm |
| Mounting | 50mm V-band |
| Spring pressure (installed) | 7psi |
| Springs included | 3, 5, 7 and 14psi |
| Base spring range | 3 - 26 psi |
| Main body | High-temp 347 stainless steel |
| Valve guide | Nitronic 60 |
| Springs | 17-7 PH stainless steel |
| Reference ports | 1/8in NPT |
| Diaphragm | Inverted, for high-pressure CO2 / compressed air |
| Clamps | Strap-type V-band |
| Features | Clockable actuator housing; optional actuator liquid cooling; optional position sensor |
| Colour | Black |
| Part number | TS-0554-1242 |
