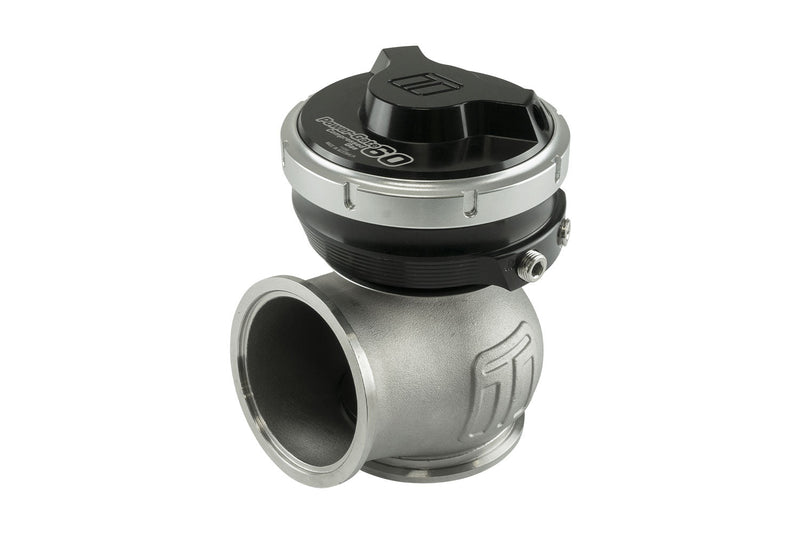

Turbosmart Gen-V PowerGate60 CG - 60mm External Wastegate - Compressed Gas
The Turbosmart Gen-V PowerGate60 CG is a 60mm external wastegate for boost control strategies that actively pressurise the top chamber, such as CO2 drag racing, rally and compressed air systems. It uses an inverted diaphragm designed for high-pressure CO2 or compressed air and large top-to-bottom pressure differentials, giving a much wider tuning window than a conventional actuator.
Note: This is the standard CG version, set to 5psi with base spring options up to 5psi. For base pressures up to 26psi, choose the CG Full Range version. A position sensor cap upgrade is available separately. Installation by a professional is recommended.
What's Included
- Gen-V PowerGate60 CG wastegate unit
- Springs: 3 and 5psi (5psi installed)
- Locking collar tool
- Gen-V SS316 valve seat
- Strap-type V-band clamps
- Inlet and outlet weld flanges
- Hose tail and blank fitting kit
- Turbosmart decal
Need help choosing a wastegate? Contact our team at sales@chicaneaustralia.com.au.
Vehicle Compatibility
| Make | Model | Chassis | Engine |
|---|---|---|---|
| Universal | Custom turbo applications with CO2 / compressed gas boost control | - | - |
Technical Specifications
| Spec | Value |
|---|---|
| Brand | Turbosmart |
| Series | Gen-V WG60CG PowerGate60 Compressed Gas |
| Valve diameter | 60mm |
| Mounting | 60mm V-band |
| Spring pressure (installed) | 5psi |
| Base spring range | Up to 5psi |
| Main body | High-temp 347 stainless steel |
| Valve guide | Nitronic 60 |
| Springs | 17-7 PH stainless steel |
| Reference ports | 1/8in NPT |
| Diaphragm | Inverted, for high-pressure CO2 / compressed air |
| Clamps | Strap-type V-band |
| Features | Clockable actuator housing; optional actuator liquid cooling; optional position sensor |
| Colour | Black |
| Part number | TS-0555-1202 |
