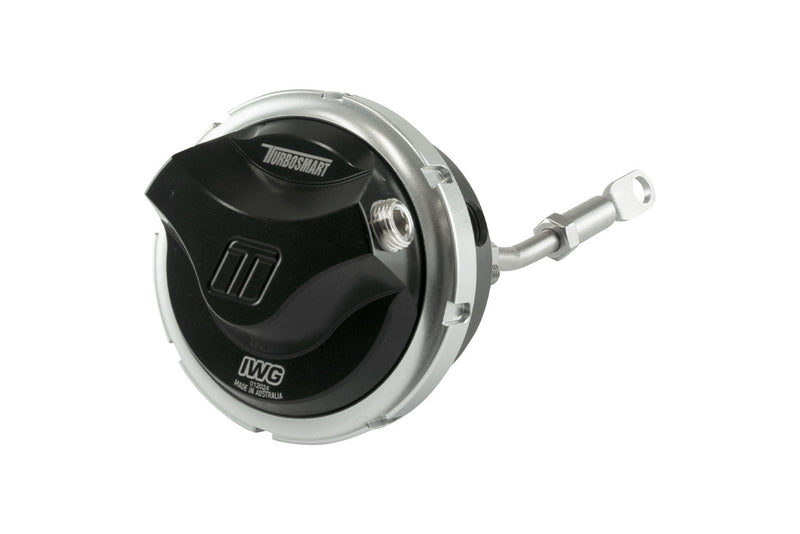

Turbosmart Gen-V IWG Twin Port Wastegate Actuator - Garrett G25 - 14psi
The Turbosmart Gen-V IWG brings technology from the Gen-V external wastegate range to the internal wastegate actuator for Garrett G25 series turbochargers. Its large diaphragm working area improves boost response and control, while a Nitronic guide, hard-chromed intermediate rod and swivel joint give the lower chamber seal needed for true twin port control. The locking collar allows base spring changes from 5 to 26psi.
Note: A bolt-on fit for internally gated Garrett G25 series turbos with a turbo-specific rod. The position sensor cap upgrade (TS-0600-2010) is available separately. Installation by a professional is recommended.
What's Included
- Gen-V internal wastegate actuator
- 4 x springs: 3psi inner, 5psi inner, 7psi middle, 14psi outer (pre-installed)
- 2 x 1/8 NPT nipples
- 1/8 NPT blanking plugs (1 pre-installed)
- C spanner / IWG actuator collar tool
- Turbosmart decal
Need help choosing an actuator? Contact our team at sales@chicaneaustralia.com.au.
Vehicle Compatibility
| Make | Model | Chassis | Engine |
|---|---|---|---|
| Universal | Garrett G25 series turbochargers | - | - |
Technical Specifications
| Spec | Value |
|---|---|
| Brand | Turbosmart |
| Series | Gen-V IWG |
| Ports | Twin port, 1/8 NPT reference ports in cap |
| Intermediate rod | Hard chromed |
| Guide | Nitronic |
| Swivel joint | Proprietary, for linear actuation |
| Spring range | 5 - 26psi |
| Spring pressure | 14psi (3, 5, 7 and 14psi springs supplied) |
| Part number | TS-0625-3143 |
