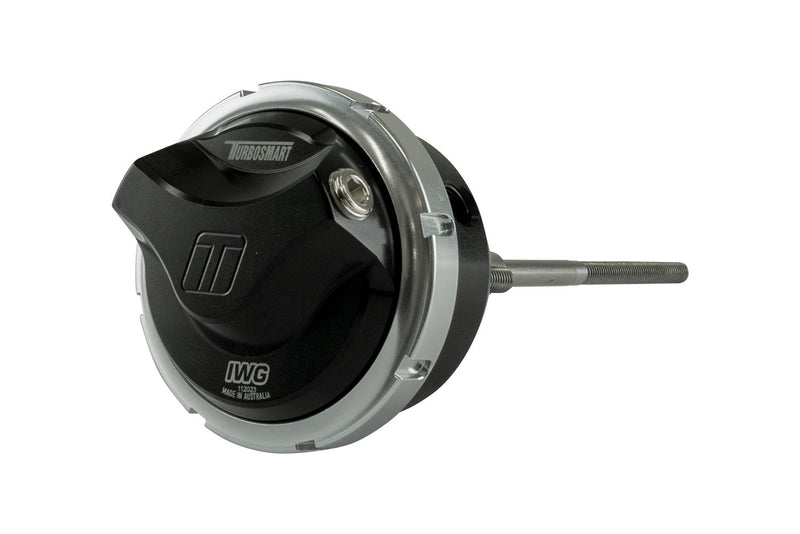

Turbosmart Gen-V IWG Twin Port Wastegate Actuator BorgWarner EFR 14psi

Turbosmart Gen-V IWG Twin Port Wastegate Actuator - BorgWarner EFR - 14psi

The Turbosmart Gen-V IWG brings technology from the Gen-V external wastegate range to the internal wastegate actuator for BorgWarner EFR turbochargers. Its large diaphragm working area improves boost response and control, while a Nitronic guide, hard-chromed intermediate rod and swivel joint give the lower chamber seal needed for true twin port control. The locking collar allows base spring changes from 5 to 26psi.

Note: A bolt-on fit for single and twin scroll B1 and B2 EFR turbos, with three rods supplied to suit all variants. The position sensor cap version adds a Hall effect sensor for boost control and data logging. Installation by a professional is recommended.

What's Included

• Gen-V internal wastegate actuator
• 3 x rods to suit BorgWarner EFR turbos
• 3 x springs: 5psi inner, 7psi middle, 14psi outer (pre-installed)
• 2 x 1/8 NPT nipples
• 1/8 NPT blanking plugs (1 pre-installed)
• Gen-V Hall effect sensor (position sensor cap version only)
• C spanner / IWG actuator collar tool
• Turbosmart decal

Need help choosing an actuator? Contact our team at sales@chicaneaustralia.com.au.
