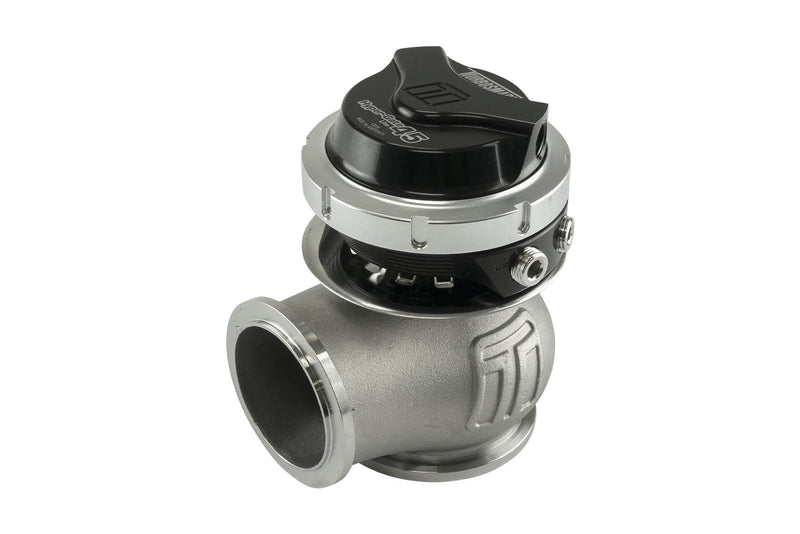

Turbosmart Gen-V HyperGate45 Lite - 45mm External Wastegate
The Turbosmart Gen-V HyperGate45 Lite is a 45mm V-band external wastegate with a compact, low-profile actuator for engine bays with limited space. It keeps the Gen-V platform's 347 stainless body, Nitronic 60 valve guide, strap-type V-band clamps and clockable actuator with provision for liquid cooling.
Note: The full range of springs is supplied, with the spring you select pre-installed. A position sensor is available separately. A direct fit upgrade for Gen4 Turbosmart wastegates. Installation by a professional is recommended.
What's Included
- Gen-V HyperGate45 Lite wastegate (selected spring pre-installed)
- Spring set
- Gen-V SS316 valve seat
- Inlet and outlet weld flanges
- Inlet and outlet V-band clamps
- Locking collar tool
- 4 x 1/8in NPT plugs
- 2 x 1/8in NPT hose tail fittings
- Turbosmart decal
Need help choosing a wastegate? Contact our team at sales@chicaneaustralia.com.au.
Vehicle Compatibility
| Make | Model | Chassis | Engine |
|---|---|---|---|
| Universal | Custom turbo applications | - | - |
Technical Specifications
| Spec | Value |
|---|---|
| Brand | Turbosmart |
| Series | Gen-V WG45 HyperGate45 Lite |
| Valve diameter | 45mm |
| Mounting | 45mm V-band |
| Actuator | Low profile (reduced height and diameter) |
| Main body | High-temp 347 stainless steel |
| Valve guide | Nitronic 60 |
| Springs | 17-7 PH stainless steel |
| Reference ports | 1/8in NPT |
| Clamps | Strap-type V-band |
| Features | Clockable actuator housing; optional liquid cooling; optional position sensor |
| Colours | Black, Sleeper |
| Part numbers | TS-0553-1602 (7psi Black), TS-0553-1612 (14psi Black), TS-0553-1615 (14psi Sleeper) |
