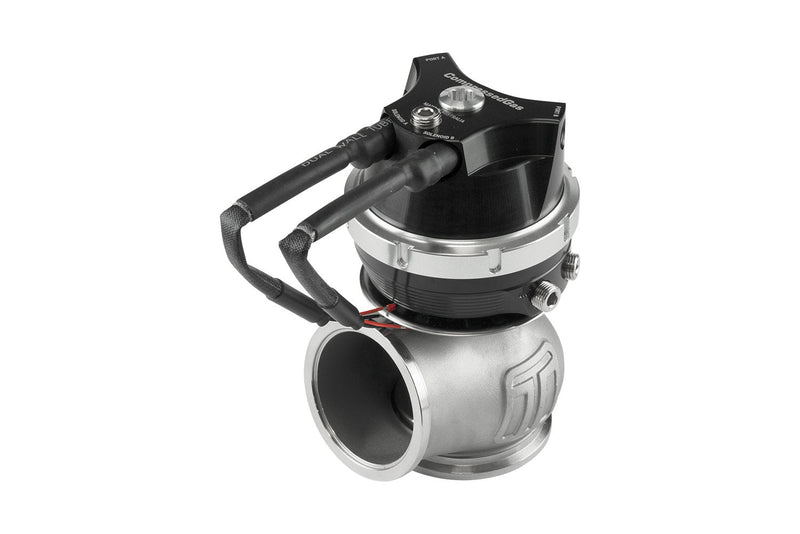

Turbosmart Gen-V HyperGate45 CG Solenoid - 45mm External Wastegate - Compressed Gas
The Turbosmart Gen-V HyperGate45 CG Solenoid is a 45mm compressed gas external wastegate with the boost control hardware built in. The spill and fill control solenoids and the dome pressure sensor normally needed for CO2 boost control are integrated into the wastegate cap, and the inverted diaphragm is designed for high-pressure CO2 or compressed air and large pressure differentials.
Note: Set to 7psi base pressure. A CO2 or compressed air supply and a suitable controller or ECU strategy are required. A position sensor is available separately. Installation by a professional is recommended.
What's Included
- Gen-V HyperGate45 CG Solenoid wastegate unit (spring pre-fitted as described)
- Spring set
- Gen-V SS316 valve seat
- Gen-V inlet and outlet V-band clamps
- Gen-V inlet and outlet flanges
- Mounting bolts and nuts
- Collar tool (master/slave)
- 4 x 1/8in NPT plugs (1 installed)
- 2 x 1/8in NPT nipples
- Turbosmart decal
Need help choosing a wastegate? Contact our team at sales@chicaneaustralia.com.au.
Vehicle Compatibility
| Make | Model | Chassis | Engine |
|---|---|---|---|
| Universal | Custom turbo applications with CO2 / compressed gas boost control | - | - |
Technical Specifications
| Spec | Value |
|---|---|
| Brand | Turbosmart |
| Series | Gen-V WG45CG HyperGate45 Compressed Gas (Solenoid) |
| Valve diameter | 45mm |
| Mounting | 45mm V-band |
| Spring pressure (installed) | 7psi |
| Control | Integrated spill and fill solenoids and dome pressure sensor in cap |
| Main body | High-temp 347 stainless steel |
| Valve guide | Nitronic 60 |
| Springs | 17-7 PH stainless steel |
| Reference ports | 1/8in NPT |
| Diaphragm | Inverted, for high-pressure CO2 / compressed air |
| Clamps | Strap-type V-band |
| Features | Clockable actuator housing; optional actuator liquid cooling; optional position sensor |
| Colour | Black |
| Part number | TS-0553-1252 |
