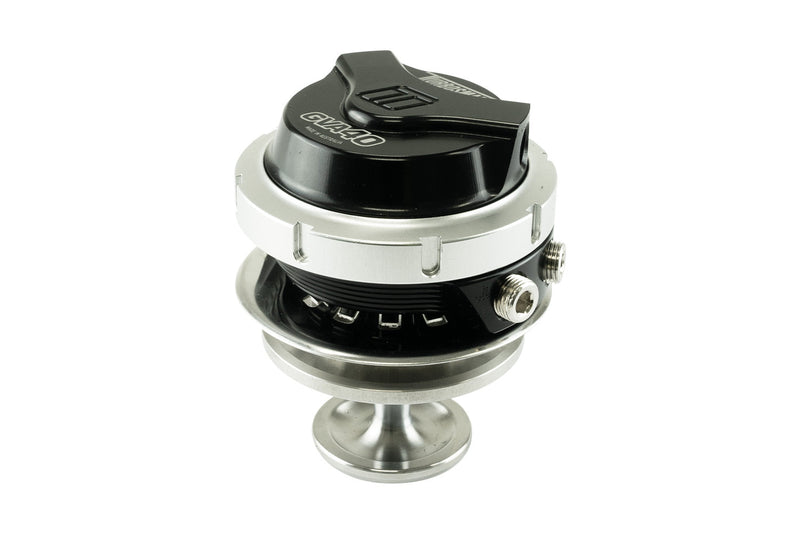

Turbosmart Gen-V GVA - Gas Valve Actuator - Compressed Gas
The Turbosmart GVA Series is a spring and diaphragm pneumatic actuator with a poppet valve, derived from the Gen-V external wastegate range. It is supplied as a modular system with a V-band mounting, so it can be adapted to custom, industrial and automotive applications where a Turbosmart wastegate body will not fit.
Note: Supplied with a 14psi base spring. Optional upgrades include a Hall effect position sensor cap, an HP cap for springs up to 50psi and an inverted diaphragm system for large reference pressure differentials. Check that your valve diameter and stroke requirements suit before ordering. Installation by a professional is recommended.
What's Included
- GVA gas valve actuator
- V-band clamp
- 1/8in NPT reference fitting kit
- Turbosmart decal
Need help choosing the right part? Contact our team at sales@chicaneaustralia.com.au.
Vehicle Compatibility
| Make | Model | Chassis | Engine |
|---|---|---|---|
| Universal | Custom valve and wastegate applications | - | - |
Technical Specifications
| Spec | Value |
|---|---|
| Brand | Turbosmart |
| Series | Gen-V GVA Gas Valve Actuator |
| Valve sizes | 40mm, 45mm, 50mm, 60mm |
| Spring pressure | 14psi |
| Spring options | 3 - 26 psi (17-7 PH) |
| Actuator body | Billet aluminium |
| Locking collar | Aluminium |
| Valve | Hard chrome coated stainless steel |
| Valve guide | Nitronic 60 |
| Thermal isolation | Ceramic |
| Reference ports | Dual 1/8in NPT |
| Mounting | V-band |
| Features | Liquid cooling provision |
| Colour | Black |
| Part numbers | TS-0552-1712 (40mm), TS-0553-1712 (45mm), TS-0554-1712 (50mm), TS-0555-1712 (60mm) |
