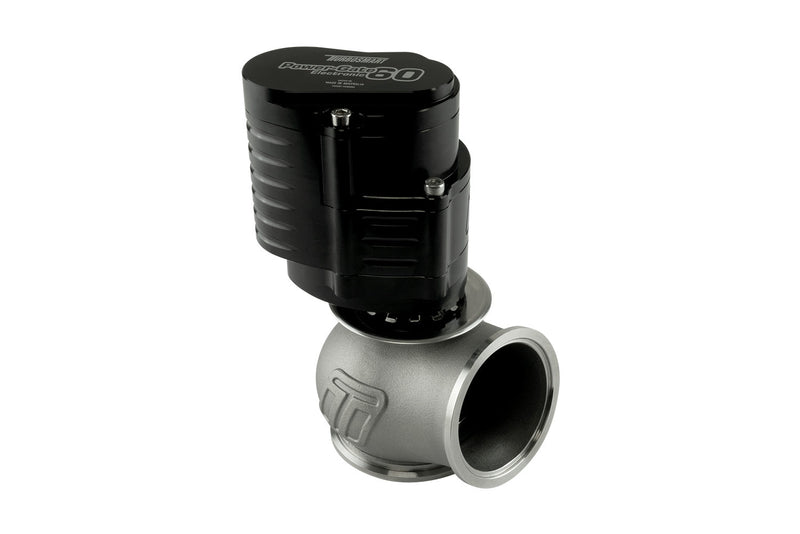

Turbosmart Gen-V eWG60 PowerGate60 - 60mm External Wastegate - Electronic Actuation
The Turbosmart eWG60 is a fully electronically actuated 60mm external wastegate built on the Gen-V PowerGate60 body, so it matches the mounting of existing Gen-V manifold and outlet hardware. With no springs, reference hoses or base pressure limits, boost can be set anywhere from zero up (manifold priority permitting) directly from your ECU or tuning software.
Note: Requires a Dual Half-Bridge output for control, similar to an electronic throttle body. If your ECU does not have a spare output, the Turbosmart BlackBox electronic wastegate controller is available separately. Available in 12V and 24V versions. Installation by a professional is recommended.
What's Included
- Gen-V PowerGate60 electronic wastegate
- Un-terminated flying lead
- PowerGate60 valve seat
- PowerGate60 inlet and outlet V-bands
- PowerGate60 inlet and outlet weld flanges
- Turbosmart decal
Need help choosing a wastegate? Contact our team at sales@chicaneaustralia.com.au.
Vehicle Compatibility
| Make | Model | Chassis | Engine |
|---|---|---|---|
| Universal | Custom turbo applications with electronic wastegate control | - | - |
Technical Specifications
| Spec | Value |
|---|---|
| Brand | Turbosmart |
| Series | Gen-V eWG60 PowerGate60 Electronic |
| Valve diameter | 60mm |
| Mounting | 60mm V-band |
| Actuation | Electronic, liquid-cooled actuator (Dual Half-Bridge input) |
| Sensors | Onboard analogue 0-5V valve position; onboard analogue 0-5V actuator temperature; onboard digital (PWM) valve position |
| Main body | High-temp 347 stainless steel |
| Valve guide | Nitronic 60 |
| Clamps | Strap-type V-band |
| Features | User adjustable actuator position; no springs, reference hoses or diaphragm |
| Colour | Black |
| Part numbers | TS-0555-1502 (12V), TS-0555-1512 (24V) |
