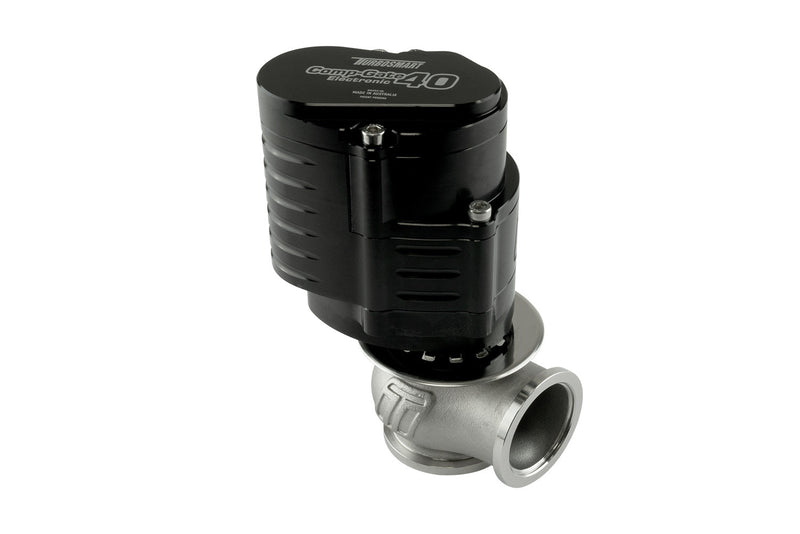

Turbosmart Gen-V eWG40 CompGate40 - 40mm External Wastegate - Electronic Actuation
The Turbosmart eWG40 is a fully electronically actuated 40mm external wastegate built on the Gen-V CompGate40 body, so it matches the mounting of existing Gen-V manifold and outlet hardware. With no springs, reference hoses or base pressure limits, boost can be set anywhere from zero up (manifold priority permitting) directly from your ECU or tuning software.
Note: Requires a Dual Half-Bridge output for control, similar to an electronic throttle body. If your ECU does not have a spare output, the Turbosmart BlackBox electronic wastegate controller is available separately. Installation by a professional is recommended.
What's Included
- Gen-V CompGate40 electronic wastegate
- Un-terminated flying lead
- CompGate40 valve seat
- CompGate40 inlet and outlet V-bands
- CompGate40 inlet and outlet weld flanges
- Turbosmart decal
Need help choosing a wastegate? Contact our team at sales@chicaneaustralia.com.au.
Vehicle Compatibility
| Make | Model | Chassis | Engine |
|---|---|---|---|
| Universal | Custom turbo applications with electronic wastegate control | - | - |
Technical Specifications
| Spec | Value |
|---|---|
| Brand | Turbosmart |
| Series | Gen-V eWG40 CompGate40 Electronic |
| Valve diameter | 40mm |
| Mounting | 40mm V-band |
| Actuation | Electronic, liquid-cooled actuator (Dual Half-Bridge input) |
| Sensors | Onboard analogue 0-5V valve position; onboard analogue 0-5V actuator temperature; onboard digital (PWM) valve position |
| Main body | High-temp 347 stainless steel |
| Valve guide | Nitronic 60 |
| Clamps | Strap-type V-band |
| Features | User adjustable actuator position; no springs, reference hoses or diaphragm |
| Colour | Black |
| Part number | TS-0552-1502 |
