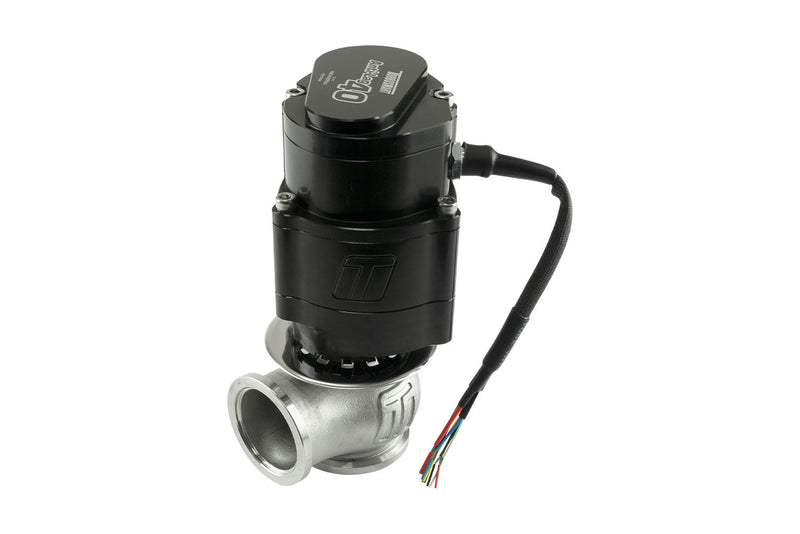

Turbosmart Gen-V eALV40 - Electronic Anti-Lag Valve
The Turbosmart Gen-V eALV40 is a 40mm fresh air bypass anti-lag valve with fully electronic actuation, removing the solenoids and tanks needed by pneumatic systems. It diverts charge air into the exhaust manifold ahead of the turbine at low throttle openings to help the turbo spool without the stresses of throttle-based anti-lag.
Note: Requires an ECU with a spare dual half-bridge output, or the Turbosmart BlackBox controller (sold separately). Installation by a professional is recommended.
What's Included
- Gen-V eALV40 electronic anti-lag valve
- Unterminated flying lead
- Valve seat
- Inlet and outlet V-band clamps
- Inlet hose adaptor 1-1/2in (38.1mm) OD
- C spanner / collar tool
- Inlet O-ring
- Turbosmart decal
Need help choosing an anti-lag valve? Contact our team at sales@chicaneaustralia.com.au.
Vehicle Compatibility
| Make | Model | Chassis | Engine |
|---|---|---|---|
| Universal | Motorsport and high-performance turbo applications | - | - |
Technical Specifications
| Spec | Value |
|---|---|
| Brand | Turbosmart |
| Valve diameter | 40mm |
| Actuation | Electronic, liquid cooled |
| Body | High-temp 347 stainless steel |
| Valve guide | Nitronic 60 |
| Actuator position | User adjustable |
| Sensors | 0-5V valve position; 0-5V actuator temperature; PWM digital valve position |
| Clamps | Strap-type V-band |
| Part number | TS-0552-1601 |
