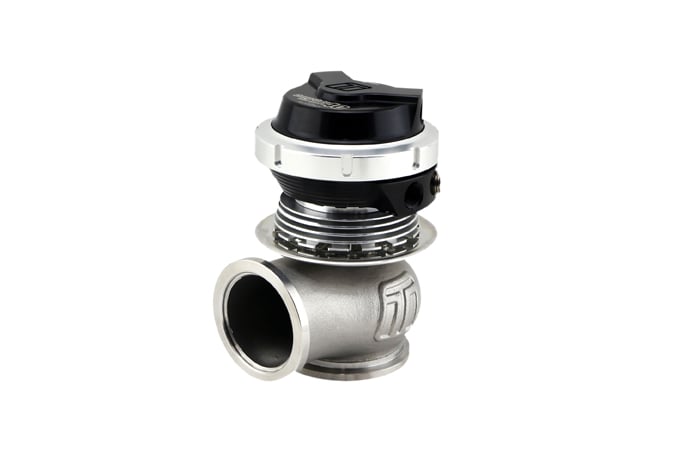

Turbosmart Gen-V CompGate40 Motorsport - 40mm External Wastegate
The Turbosmart Gen-V CompGate40 Motorsport is a 40mm external wastegate built for the heat loads of endurance-style motorsport. It adds a CFD-designed heatsink between the wastegate body and the actuator, which increases the distance between the two and uses convection and physical shielding to keep damaging heat away from the actuator, while also helping to cool the valve and guide.
Note: Supplied with all four springs (3, 5, 7 and 14psi), with the 14psi spring installed. A position sensor is available separately. A direct fit upgrade for Gen4 Turbosmart wastegates. Installation by a professional is recommended.
What's Included
- Gen-V CompGate40 Motorsport wastegate unit
- Spring set: 3, 5, 7 and 14psi (14psi installed)
- Gen-V SS316 valve seat
- Strap-type V-band clamps
- Inlet and outlet weld flanges
- Hose tail and blank fitting kit
- Turbosmart decal
Need help choosing a wastegate? Contact our team at sales@chicaneaustralia.com.au.
Vehicle Compatibility
| Make | Model | Chassis | Engine |
|---|---|---|---|
| Universal | Custom turbo applications | - | - |
Technical Specifications
| Spec | Value |
|---|---|
| Brand | Turbosmart |
| Series | Gen-V WG40 CompGate40 Motorsport |
| Valve diameter | 40mm |
| Mounting | 40mm V-band (also suits peer 44mm V-band fitment) |
| Spring pressure (installed) | 14psi |
| Springs included | 3, 5, 7 and 14psi |
| Main body | High-temp 347 stainless steel |
| Valve guide | Nitronic 60 |
| Springs | 17-7 PH stainless steel |
| Reference ports | 1/8in NPT |
| Thermal management | CFD-designed heatsink plus ceramic isolator between body and actuator |
| Features | Clockable actuator housing; optional actuator liquid cooling; optional position sensor |
| Colour | Black |
| Part number | TS-0552-1102 |
