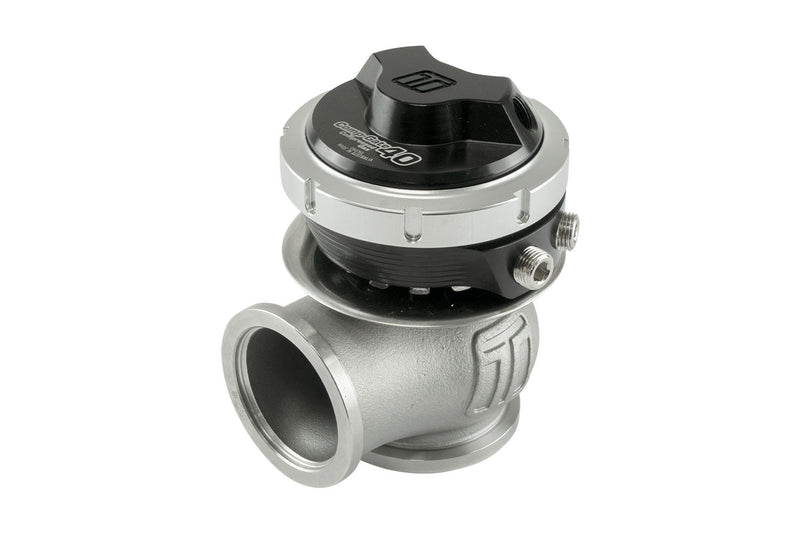

Turbosmart Gen-V CompGate40 CG - 40mm External Wastegate - Compressed Gas
The Turbosmart Gen-V CompGate40 CG is a 40mm external wastegate for boost control strategies that actively pressurise the top chamber, such as CO2 drag racing, rally and compressed air systems. It uses an inverted diaphragm designed for high-pressure CO2 or compressed air and large top-to-bottom pressure differentials, giving a much wider tuning window than a conventional actuator.
Note: This is the standard CG version, set to 5psi with base spring options up to 5psi. For base pressures up to 26psi, choose the CG Full Range version. A position sensor cap upgrade is available separately. Installation by a professional is recommended.
What's Included
- Gen-V CompGate40 CG wastegate unit (spring pre-fitted as described)
- Spring set
- Valve seat
- Inlet and outlet weld flanges and clamps
- Collar tool
- 4 x 1/8in NPT plugs
- 2 x 1/8in NPT hose tail fittings
Need help choosing a wastegate? Contact our team at sales@chicaneaustralia.com.au.
Vehicle Compatibility
| Make | Model | Chassis | Engine |
|---|---|---|---|
| Universal | Custom turbo applications with CO2 / compressed gas boost control | - | - |
Technical Specifications
| Spec | Value |
|---|---|
| Brand | Turbosmart |
| Series | Gen-V WG40CG CompGate40 Compressed Gas |
| Valve diameter | 40mm |
| Mounting | 40mm V-band |
| Spring pressure (installed) | 5psi |
| Base spring range | Up to 5psi |
| Main body | High-temp 347 stainless steel |
| Valve guide | Nitronic 60 |
| Springs | 17-7 PH stainless steel |
| Reference ports | 1/8in NPT |
| Diaphragm | Inverted, for high-pressure CO2 / compressed air |
| Clamps | Strap-type V-band |
| Features | Clockable actuator housing; optional actuator liquid cooling; optional position sensor |
| Colour | Black |
| Part number | TS-0552-1202 |
