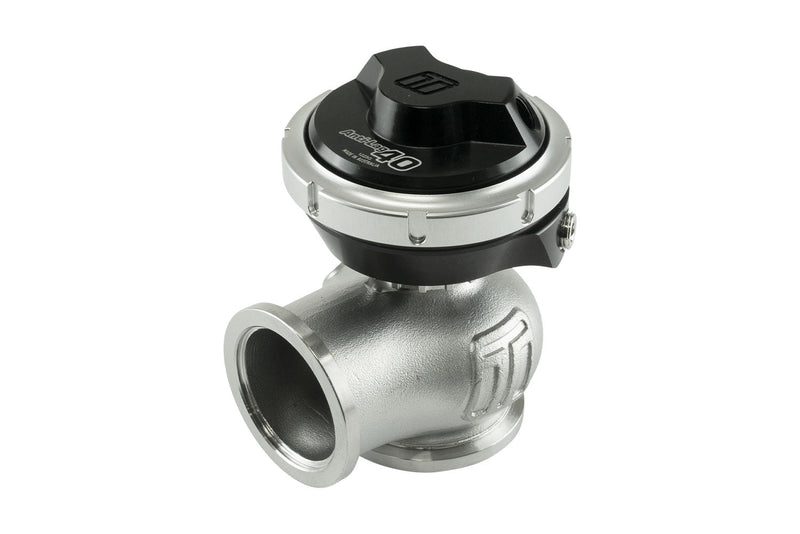

Turbosmart Gen-V ALV40 - Anti-Lag Valve
The Turbosmart Gen-V ALV40 is a 40mm fresh air bypass anti-lag valve for motorsport. At low throttle openings it diverts charge air from the turbo into the exhaust manifold ahead of the turbine, helping the turbo spool without the high engine stresses of throttle-based, late-combustion anti-lag. It uses a sealed twin-chamber design that can be controlled with boost or vacuum.
Note: The top port is the primary control port; the lower chamber allows twin-port control independent of manifold pressure. Optional outlet weld flanges are available separately. Installation by a professional is recommended.
What's Included
- Gen-V anti-lag valve
- Valve seat
- Inlet and outlet V-band clamps
- Inlet hose adaptor 1-1/2in OD
- Inlet weld flange 1-1/2in OD
- C spanner / collar tool
- Inlet O-ring
- Turbosmart decal
Need help choosing an anti-lag valve? Contact our team at sales@chicaneaustralia.com.au.
Vehicle Compatibility
| Make | Model | Chassis | Engine |
|---|---|---|---|
| Universal | Motorsport turbo applications | - | - |
Technical Specifications
| Spec | Value |
|---|---|
| Brand | Turbosmart |
| Valve diameter | 40mm |
| Control | Twin chamber, boost or vacuum |
| Actuator housing | Clockable |
| Body | High-temp 347 stainless steel |
| Valve guide | Nitronic 60 |
| Springs | 17-7 PH stainless steel |
| Clamps | Strap-type V-band |
| Part number | TS-0552-1402 |
