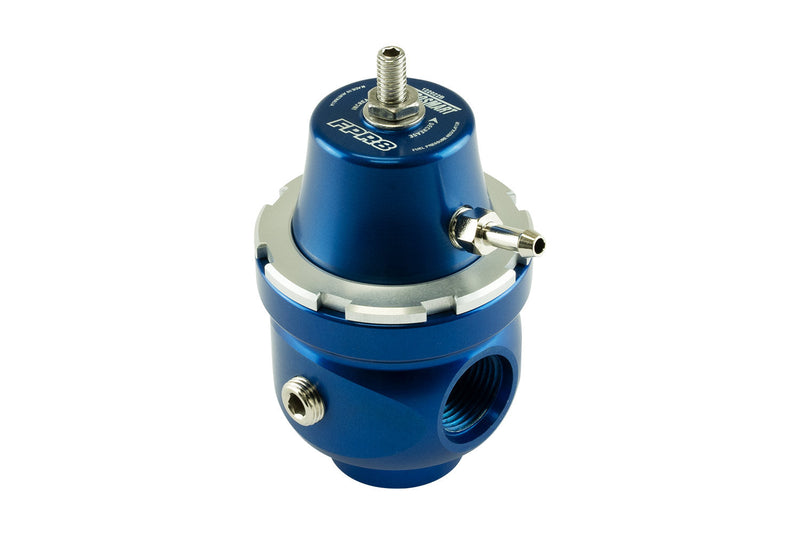

Turbosmart FPR8 - Fuel Pressure Regulator - Suits -8AN Fuel Systems
The Turbosmart FPR8 is a fuel pressure regulator for -8AN fuel systems, giving precise fuel control and response through a true 1:1 ratio with strong flow and bypass capacity. A stainless steel valve seat and mil-spec diaphragm make it suitable for all fuel types, including race fuel and aggressive leaded fuels, in systems up to 2000hp.
Note: The Standard version adjusts from 35 to 80psi for EFI systems. The LP (low pressure) version adjusts from 3 to 20psi for low-pressure and carburettor systems and is available in black only. Installation by a professional is recommended.
What's Included
- Fuel pressure regulator
- Mounting bracket
- 2 x M5 mounting screws
- Turbosmart decal
Need help choosing a fuel pressure regulator? Contact our team at sales@chicaneaustralia.com.au.
Vehicle Compatibility
| Make | Model | Chassis | Engine |
|---|---|---|---|
| Universal | -8AN fuel systems | - | - |
Technical Specifications
| Spec | Value |
|---|---|
| Brand | Turbosmart |
| Series | FPR8 |
| Ports | -8AN inlet, outlet and return |
| Pressure range | Standard 35-80psi, LP 3-20psi |
| Suits | Fuel systems up to 2000hp |
| Ratio | 1:1 |
| Valve seat | Stainless steel |
| Diaphragm | Mil-spec |
| Gauge / sensor port | 1/8" NPT |
| Adjustment | Adjustable pressure with Turbosmart locking collar |
| Fuel compatibility | All fuel types |
| Colours | Blue, Black, Purple, Red, Sleeper (Standard); Black (LP) |
| Part numbers | TS-0404-1031 (Standard Blue), TS-0404-1032 (Standard Black), TS-0404-1033 (Standard Purple), TS-0404-1034 (Standard Red), TS-0404-1035 (Standard Sleeper), TS-0404-1132 (Low Pressure (LP) Black) |
| Supersedes | TS-0404-1031 replaces TS-0401-1105, TS-0404-1032 replaces TS-0401-1106, TS-0404-1033 replaces TS-0401-1111, TS-0404-1034 replaces TS-0401-1112, TS-0404-1035 replaces TS-0401-1115 |
