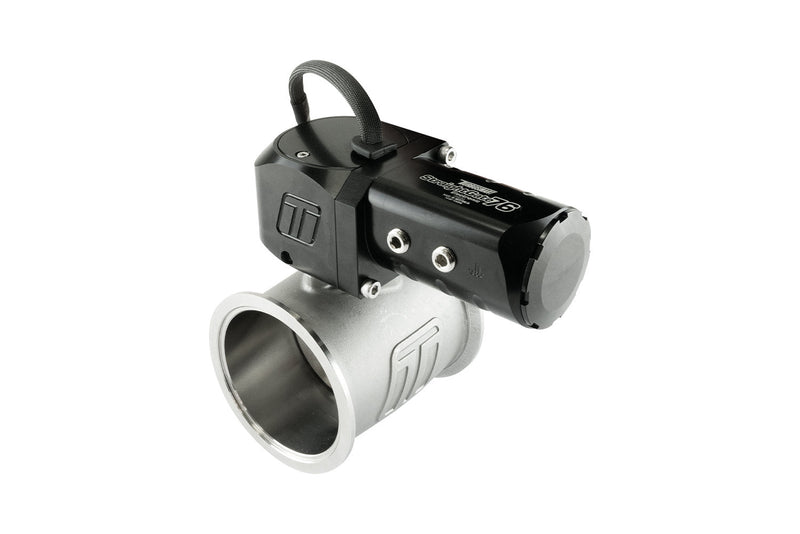

Turbosmart eSG76 Electronic StraightGate - 76mm External Wastegate - Electronic Actuation
The Turbosmart eSG76 is a 76mm zero-offset butterfly-style external wastegate with full electronic actuation - no reference hoses, springs or diaphragm. The zero-offset butterfly pivots centrally, so exhaust drive pressure acts equally on both halves and the valve is self-balancing, and the straight-through path flows more than a poppet valve that has to turn the gas 90 degrees. It is the largest and highest flowing StraightGate.
Note: Requires a Dual H-Bridge output from your ECU or a suitable electronic wastegate controller. Liquid cooling is provided for actuator stability. Installation by a professional is recommended.
What's Included
- Electronic StraightGate unit
- Un-terminated flying lead
- StraightGate inlet and outlet V-bands
- StraightGate inlet and outlet weld flanges
- Turbosmart decal
Need help choosing a wastegate? Contact our team at sales@chicaneaustralia.com.au.
Vehicle Compatibility
| Make | Model | Chassis | Engine |
|---|---|---|---|
| Universal | Custom turbo applications with electronic wastegate control | - | - |
Technical Specifications
| Spec | Value |
|---|---|
| Brand | Turbosmart |
| Series | StraightGate76 eSG76 Electronic |
| Valve | 76mm (2.99in) zero-offset butterfly |
| Flow | 723.7 CFM / 20.49 m3 per minute |
| Butterfly and shaft | 630 stainless steel |
| Main body | 347 stainless steel |
| V-band clamps | Heat treated 431 stainless steel |
| Actuation | Electronic servo motor with zero-backdrive gearbox (Dual H-Bridge input) |
| Sensors | Onboard analogue 0-5V actuator temperature; onboard analogue 0-5V valve position; onboard digital (PWM) valve position |
| Wiring | 7-wire un-terminated flying lead |
| Mounting | 360 degree on V-band; clockable actuator (3 x 120 degree positions) |
| Cooling | Actuator liquid cooling |
| Colour | Black |
| Part number | TS-0567-1002 |
