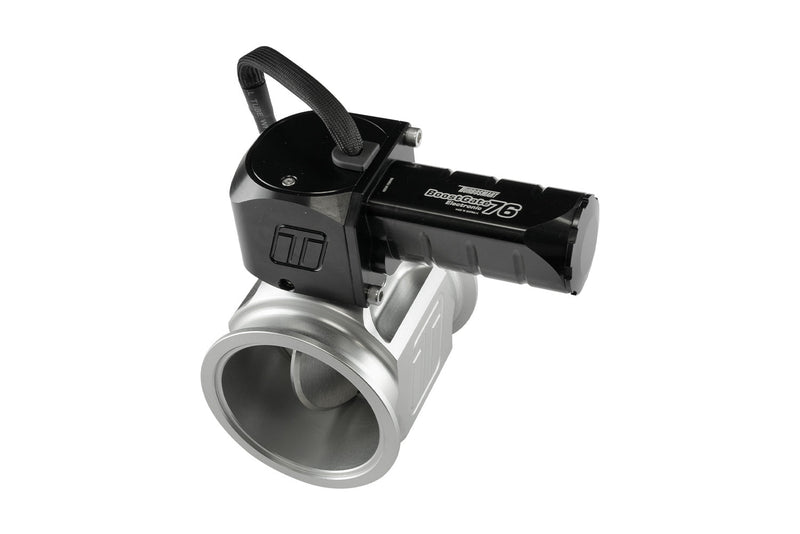

Turbosmart eBG76 Electronic BoostGate 76 - Charge Air Valve
The Turbosmart eBG76 BoostGate is a 76mm electronically actuated, zero-offset butterfly valve made from billet aluminium for charge pipe boost control. Unlike an external wastegate, which bypasses exhaust gas around the turbine, charge air control bleeds compressed air from the charge pipe to control boost directly. It suits applications such as drag racing where the turbo is already optimised and the turbine is not the limiting factor.
Note: Uses a Zero-Backdrive gearbox to reduce power draw. Requires a dual H-bridge output to drive the actuator (for example the Turbosmart BlackBox). Installation by a professional is recommended.
What's Included
- eBG76 Electronic BoostGate 76
- V-band clamps
- Aluminium weld flanges
- Turbosmart decal
Need help choosing a BoostGate? Contact our team at sales@chicaneaustralia.com.au.
Vehicle Compatibility
| Make | Model | Chassis | Engine |
|---|---|---|---|
| Universal | Charge pipe boost control - custom applications | - | - |
Technical Specifications
| Spec | Value |
|---|---|
| Brand | Turbosmart |
| Valve | 76mm (3.00in) zero-offset butterfly |
| Flow | 723.7 CFM / 20.49 m3/min |
| Butterfly and shaft | 630 stainless steel |
| Main body | Billet aluminium |
| Mounting | V-band, 360-degree |
| Actuator positions | 2 x 120 deg clockable |
| Actuation | Full electronic, dual H-bridge input |
| Sensors | 0-5V actuator temperature; 0-5V valve position; PWM digital valve position |
| Loom | 7-wire unterminated flying lead |
| Colour | Black |
| Part number | TS-0267-1042 |
