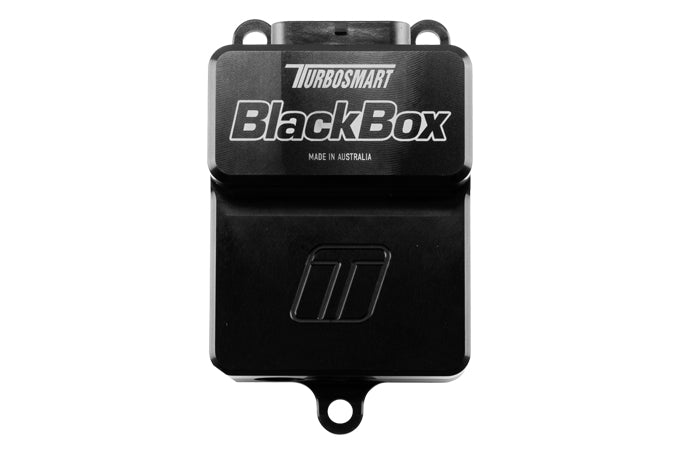

Turbosmart BlackBox - Electronic Wastegate Controller
The Turbosmart BlackBox is a dedicated dual channel electronic wastegate controller that translates boost control strategies from factory, aftermarket and motorsport ECUs into a gate position. It drives Turbosmart electronic external wastegates including the StraightGate50, CompGate40, HyperGate45, ProGate50 and PowerGate60, on single or twin wastegate setups. It comes pre-loaded with the flow versus lift calibration for all Turbosmart electronic gates, and settings are adjusted via USB and a PC application.
Note: Accepts PWM, 0-5V position target and CAN position/area target inputs, with a CAN override for advanced ECU strategies. Includes auto calibration and over-temperature and over-current protection. Installation by a professional is recommended.
What's Included
- BlackBox wastegate controller unit
- 34-pin connector
- 34 pins
- Turbosmart decal
- Instruction card
Need help choosing a wastegate controller? Contact our team at sales@chicaneaustralia.com.au.
Vehicle Compatibility
| Make | Model | Chassis | Engine |
|---|---|---|---|
| Universal | Turbosmart electronic external wastegates | - | - |
Technical Specifications
| Spec | Value |
|---|---|
| Brand | Turbosmart |
| Type | Dual channel high current H-bridge wastegate controller |
| Suits | StraightGate50, CompGate40, HyperGate45, ProGate50, PowerGate60 electronic wastegates |
| Inputs | 2 x valve position (0-5V); 2 x temperature (0-5V); 2 x frequency (position encoder); PWM target; 0-5V target |
| CAN | Position demand, valve area target, programmable PID mode |
| Protection | Internal over-current and over-temperature |
| Calibration | Auto position calibration; factory PID calibration for Turbosmart eGates |
| Housing | Anodised aluminium |
| Connector | 34-pin Superseal |
| Part number | TS-0305-1001 |
