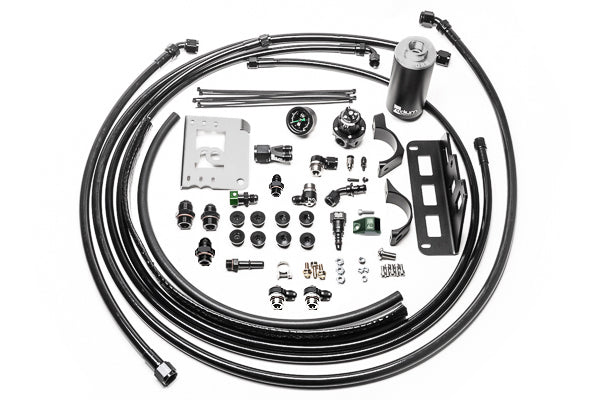

Radium Engineering Fuel Hanger Plumbing Kit - Cadillac CTS-V (2009-2015)
This Radium Engineering plumbing kit completes the fuel path from a Radium fuel pump hanger to the engine on the 2009-2015 Cadillac CTS-V (LSA). Two 6AN PTFE feed lines are used from the fuel hat to the filter because a single 8AN line will not fit between the tank and the unibody, and the rear half of the OEM feed line is kept so the factory fuel pressure sensor remains for ECU diagnostics. The stock feed line is repurposed as a 6AN return (SKUs 20-1325-03, 20-1325-05).
Use the variant selector to choose the filter element: 10-micron stainless steel (cleanable and reusable) or finer 6-micron microglass.
Note: Radium Engineering 20-0362 fuel rails are required and sold separately, as the regulator and gauge mount directly to the RH fuel rail. Designed around the US-market vehicle; please confirm fitment on Australian-delivered vehicles with our team before ordering. Installation by a professional is recommended.
Kit Contents
- Dual 6AN PTFE feed lines from the fuel hat to the filter
- Fuel filter with built-in check valve (stainless or microglass, per variant)
- Anodised bolt-in fuel filter bracket – no permanent vehicle modifications
- Aluminium hose retainer bracket
- Fuel pressure regulator and pressure gauge that mount to the RH fuel rail
- Thermal insulating sleeve for chafe and exhaust heat protection
Need help confirming fitment? Contact our team at sales@chicaneaustralia.com.au.
Vehicle Compatibility
| Make | Model | Chassis | Years | Engine / Notes |
|---|---|---|---|---|
| Cadillac | CTS-V | 2nd Gen | 2009-2015 | LSA |
Technical Specifications
| Spec | Value |
|---|---|
| Brand | Radium Engineering |
| Application | 2009-2015 Cadillac CTS-V (LSA) |
| Feed lines | Dual 6AN PTFE |
| Return line | OEM feed line repurposed as 6AN return |
| Filter | Built-in check valve; 10-micron stainless or 6-micron microglass |
| Regulator / gauge | Mounts to RH fuel rail |
| Requires | Radium 20-0362 fuel rails (sold separately) |
| Part number(s) | 20-1325-03, 20-1325-05 |
| Stainless – Part number | 20-1325-03 |
| Microglass – Part number | 20-1325-05 |
No instructions available for this product.
