Radium Engineering Fuel Filter Mount – Subaru WRX/STI 08–21

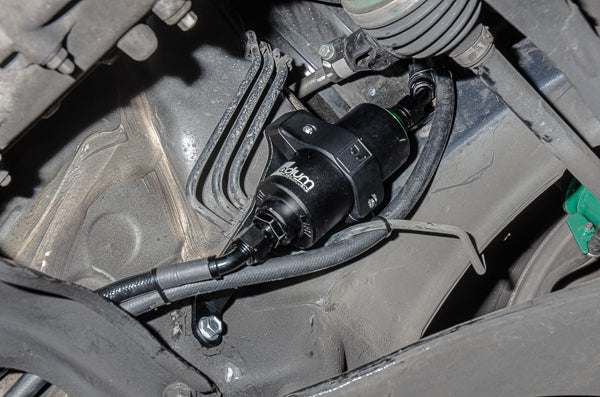

This hardware kit allows a clean and secure installation of a Radium Engineering fuel filter on late model Subaru vehicles. Designed to fit seamlessly onto the frame rail just left of the transmission, this mount utilises factory hole locations—no cutting or drilling required. The system provides a strong and vibration-resistant base for high-performance fuel filtration.

Overview

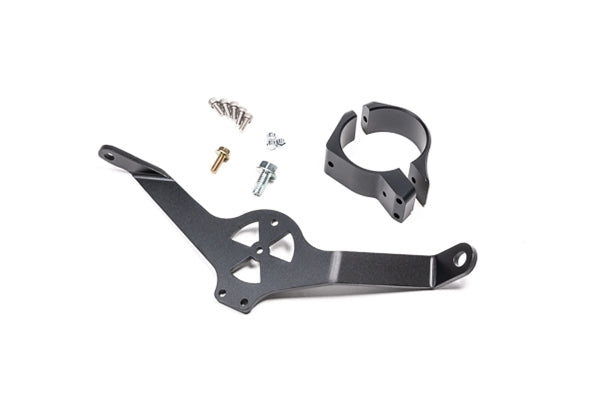

The laser-cut aluminium bracket and billet 60mm clamp ensure durability and easy installation. The filter is fastened with stainless steel bolts for corrosion resistance. Designed with high performance in mind, the mount is also compatible with Bosch 0 580 254 044 external pumps.

Key Features

• Mounts using factory threaded holes

• No permanent modifications required

• CNC laser-cut anodized aluminium bracket

• Billet anodized 60mm aluminium clamp

• Stainless steel hardware included

Notes

1. Fuel filter is not included but can be selected separately

2. Compatible with Radium Engineering 10AN ORB filters

3. Aftermarket fuel lines and fittings must be configured separately

4. Also compatible with Bosch 0 580 254 044 fuel pumps

Vehicle Compatibility
08–14 Subaru Impreza (all models)
08–14 Subaru Forester (all models)
14–18 Subaru Forester XT
15–21 Subaru WRX
15–21 Subaru STi
