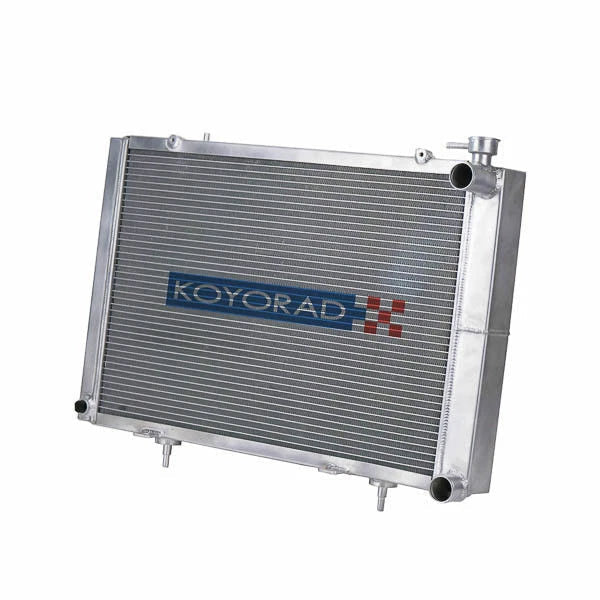

Koyo Performance Radiator - Toyota Mark II/Chaser/Cresta/Cressida - MT
Koyorad builds its performance radiators from all aluminium, Nocolok furnace brazed and hand Heliarc welded for the strongest possible core bond, then triple pressure tested before it leaves the factory. This one is a direct bolt-in upgrade for the Toyota Mark II, Chaser, Cresta, and Cressida, built to cope with the extra heat load of a pushed 1JZ-GTE.
This listing covers the JZX100 chassis Mark II, Chaser, Cresta, and Cressida, fitted with the 1JZ-GTE 2.5L twin turbo engine from 1996 onward. It retains the factory fan shroud mounts and hose connections, so no cutting or modification is needed to fit it.
Note: this radiator (HH010860N) is for manual transmission (MT) vehicles only. Confirm your JZX100's transmission before ordering.
Specifications
- Part number: HH010860N / KH010860NU06
- Construction: all aluminium, Nocolok brazed, Heliarc welded
- Core thickness: 48mm
- Core dimensions (H x W): 400 x 704/724mm
- Tube pitch: 55/55 x 735mm
- Inlet diameter: Ø35mm (top)
- Outlet diameter: Ø35mm (bottom)
- Drain plug: M16
- Fan shroud: retains OEM mounts
- Hoses: compatible with stock radiator hoses
- Fitment: direct bolt-in, no modifications required
- Sold individually
Vehicle compatibility, OEM part numbers, and fitment notes are provided in the tabs above. Please confirm your JZX100's model, submodel, and transmission before ordering.
Not sure if this radiator suits your build? Contact our team at sales@chicaneaustralia.com.au for expert advice.
Vehicle Compatibility
| Make | Model | Chassis | Engine |
|---|---|---|---|
| Toyota | Chaser | JZX100 | 1JZ-GTE |
| Toyota | Cresta | JZX100 | 1JZ-GTE |
| Toyota | Cressida | JZX100 | 1JZ-GTE |
| Toyota | Mark II | JZX100 | 1JZ-GTE |
Technical Specifications
| Spec | Value |
|---|---|
| Part Number | HH010860N / KH010860NU06 |
| Core Thickness | 48mm |
| Core Dimensions (H × W) | 400 × 704/724mm |
| Tube Pitch | 55/55 × 735mm |
| Inlet Diameter | Ø35mm (top) |
| Outlet Diameter | Ø35mm (bottom) |
| Drain Plug | M16 |
| Construction | All aluminium, Nocolok brazed, Heliarc welded |
| Transmission Compatibility | Manual (MT) |
| Fan Shroud | Retains OEM mounts |
| Hose Compatibility | Compatible with stock radiator hoses |
No instructions available for this product.
