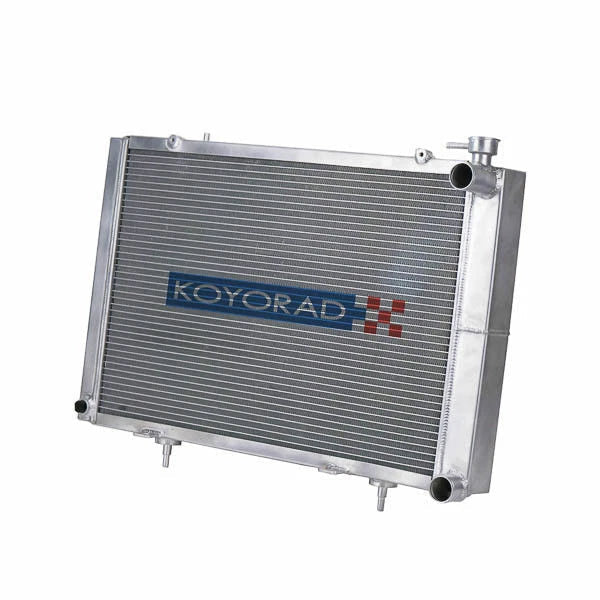

Koyo Performance Radiator - Mazda MX-5 (ND5RC/NDERC) - 2.0L MT
Koyorad builds its Racing Radiator range to genuine performance standards, and this all aluminium unit brings that same thermal capability to the Mazda MX-5. Designed as a direct replacement for the factory radiator, it improves heat rejection without altering the clean factory install.
This listing covers the Mazda MX-5 ND5RC/NDERC 2.0L Manual Transmission model from 2015 onwards. SKU KH063152 retains all OEM fan shroud mounts and hose connections, so no cutting, drilling or hose adapting is required.
Specifications
- Part Number: KH063152
- Core Thickness: 48mm
- Core Dimensions (H x W): 550 x 402/416mm
- Tube Pitch: 55/55 x 415mm
- Inlet/Outlet Diameter: 34mm (top and bottom)
- Construction: All aluminium, Nocolok furnace brazed, hand TIG welded
- Filler Neck: Precision machined billet aluminium
- Fan Shroud: Retains OEM mounting points
- Hoses: Compatible with stock radiator hoses
- Fitment: Direct bolt in, no modifications required
- Transmission: Manual (MT) only
Vehicle compatibility, OEM part numbers, and fitment notes are provided in the tabs above. Please confirm your MX-5's model year and transmission type before ordering.
Not sure if this radiator suits your build? Contact our team at sales@chicaneaustralia.com.au for expert advice.
Vehicle Compatibility
| Make | Model | Chassis | Engine |
|---|---|---|---|
| Mazda | MX-5 | ND5RC/NDERC | P5VP |
Technical Specifications
| Spec | Value |
|---|---|
| Core Thickness | 48mm |
| Core Dimensions (H × W) | 550 × 402/416mm |
| Tube Pitch | 55/55 × 415mm |
| Inlet / Outlet Diameter | Ø34mm (top & bottom) |
| Construction | All aluminium, Nocolok brazed, Heliarc welded |
| Transmission | Manual (MT) |
| Fan Shroud | Retains OEM mounts |
| Hoses | Compatible with stock radiator hoses |
| Fitment | Direct bolt-in, no modifications required |
| OEM Cross Reference | Mazda P51N 15 200 |
