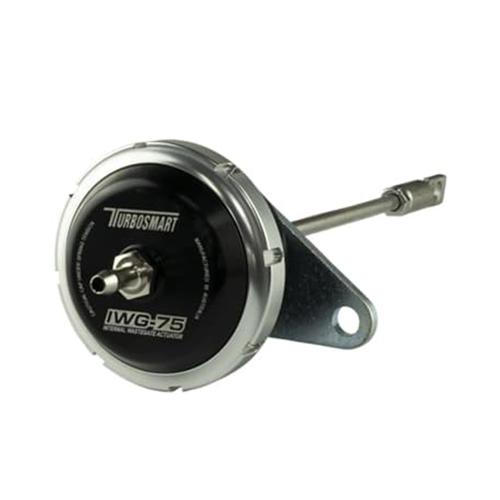

Turbosmart IWG75 Internal Wastegate Actuator – Mitsubishi Lancer Evolution X

The Turbosmart IWG75 Internal Wastegate Actuator is a high-performance upgrade for the Mitsubishi Lancer Evolution X with the factory TD05H turbocharger. It’s designed to improve boost response and control throughout the RPM range, delivering earlier peak boost and holding it longer into higher revs.

With a larger diaphragm surface area and revised spring rates, the IWG75 increases the actuator’s working ratio, giving it greater control over boost and backpressure forces. This results in a broader, more responsive power curve — even when set to the same base pressure as the factory unit.

Available in multiple base pressures, the 14 psi version is a direct replacement for the OEM actuator. Higher-pressure variants will require ECU tuning or recalibration.

Available Options:
10 PSI / 0.68 BAR – TS-0601-3102
12 PSI / 0.83 BAR – TS-0601-3122
14 PSI / 1.00 BAR – TS-0601-3142
18 PSI / 1.24 BAR – TS-0601-3182
22 PSI / 1.51 BAR – TS-0601-3222

Key Features:
– High-grade billet aluminium construction
– Stainless steel rod and clevis
– Proprietary Silicon Nomex diaphragm
– Turbosmart locking collar system
– Optional spring rates from 3 PSI to 26 PSI

Fitment:
Direct bolt-on for TD05H turbo on Mitsubishi Lancer Evolution X (4B11T)

Note:
Only the 14 PSI version is a true plug-and-play replacement. Other pressures may require tuning or ECU calibration for proper performance.
