Radium Engineering Fluid Lock Catch Can Kit, PCV Mazda RX-7 (FD3S)

Radium Engineering Fluid Lock Catch Can Kit, PCV - Mazda RX-7 (FD3S)

Radium Engineering builds its catch cans to motorsport grade tolerances using CNC machined billet aluminium, and this PCV kit brings the patented Fluid Lock® system to the Mazda RX-7. It stops collected oil and moisture from ever reaching your intake, keeping inlet tracts, throttle body and intercooler piping clean.

This listing covers the Mazda RX-7 (FD3S), 1992–2002, both RHD and LHD configurations. SKU 20-0977-FL mounts to the firewall and plumbs into the brake booster manifold port, maintaining OEM closed loop PCV operation while adding fluid separation ahead of the intake.

Key Features

• Direct fitment, no drilling required
• Patented Fluid Lock® overflow protection
• 2-step oil separation baffling
• O-ring sealed dipstick for level checks
• 207 mL (7 fl oz) reservoir capacity
• Large 10AN ORB inlet/outlet, plugged 4AN ORB drain port
• Anodised aluminium mount bracket and MAP sensor mount
• Low profile swivelling banjo PCV and SAE quick connect fittings

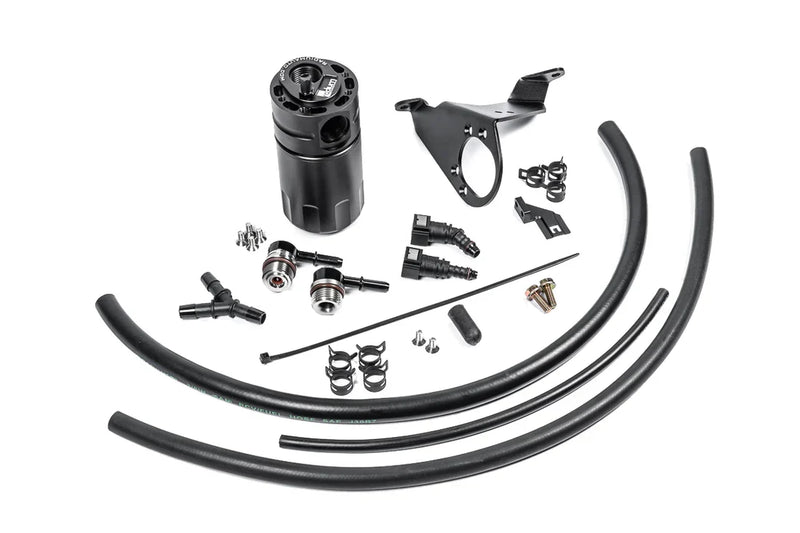

• Includes PCV hose, vacuum hose, spring clamps and stainless hardware

Vehicle compatibility, OEM part numbers, and fitment notes are provided in the tabs above. Please confirm your RX-7's model year and configuration before ordering.

Not sure if this kit suits your build? Contact our team at sales@chicaneaustralia.com.au for expert advice.
