Radium Compact Fuel Vent Charcoal Canister Universal

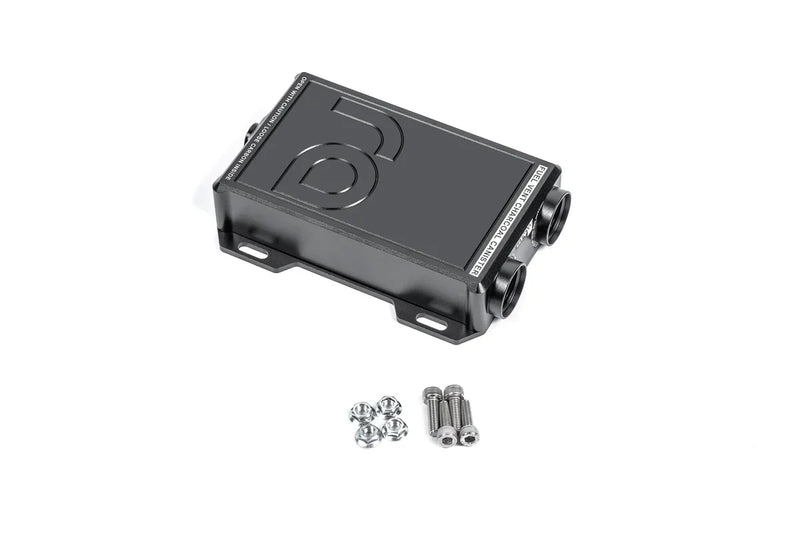

Radium Compact Fuel Vent Charcoal Canister – Universal

Radium Engineering builds motorsport grade fuel system hardware for tuners and race teams who need components that actually hold up under real world boost and fuel pressure. The Compact Fuel Vent Charcoal Canister uses vibratory packed activated charcoal to capture fuel vapour from vented fuel systems, giving you a smaller footprint alternative to Radium's full size canister without giving up filtration performance.

This listing covers the Universal configuration (SKU 20-1827-00), with 8AN and 12AN port options also selectable via the variant dropdown above. All versions share the same CNC machined 6061 aluminium body and internal filtration media, just with different inlet and outlet AN sizing to suit your existing plumbing.

Note: fittings and hoses are sold separately, and a service kit for the replaceable charcoal element is available separately.

Specifications

• Material: CNC machined 6061 aluminium, Type-II anodised finish
• Internal volume: 44.1 cubic inches (722 mL) empty
• Filtration: vibratory packed activated carbon, 150 micron strainer, anodised aluminium baffle
• Ports: 2x 10AN ORB (1-5/16"-12) female, interchangeable inlet/outlet
• Drain ports: 4AN ORB (7/16"-20) female with preinstalled plugs
• Mounting hardware: M5x8.8mm bolt/nut kit (x4) included
• Width 88.9mm, body height 79.4mm, height incl. ports 98.4mm, depth 32.4mm
• Total height incl. base 142.6mm, base 98.4mm x 21.7mm
• Fuel compatibility: petrol, E85, alternative fuels
• Serviceable design with replaceable charcoal element
• Part numbers: 20-1827-00 (Universal) / 20-1827-08 (-8AN) / 20-1827-12 (-12AN)

Fitment notes, AN port sizing and installation guidance are provided in the tabs above. Please confirm which AN configuration suits your fuel system before ordering.

Not sure if this canister suits your build? Contact our team at sales@chicaneaustralia.com.au for expert advice.
