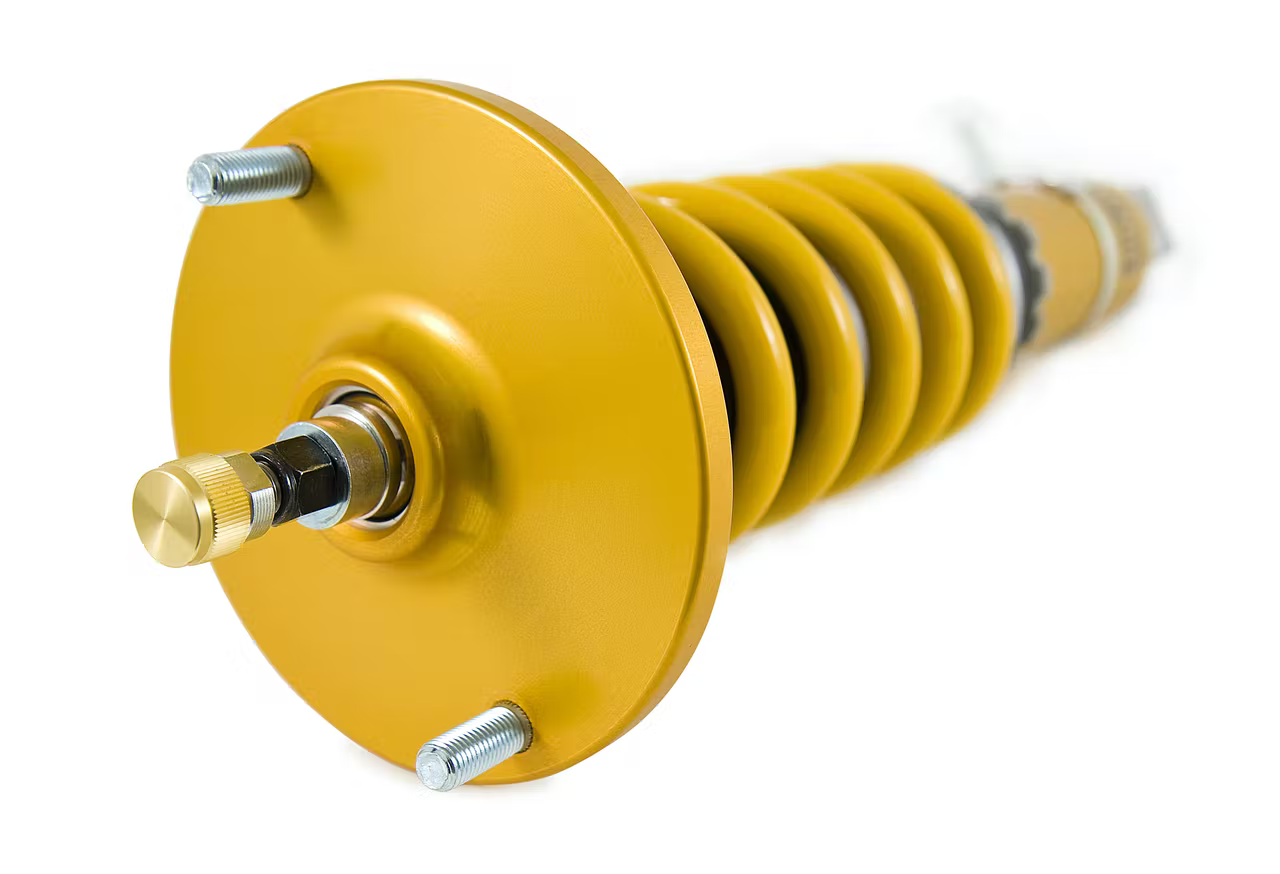

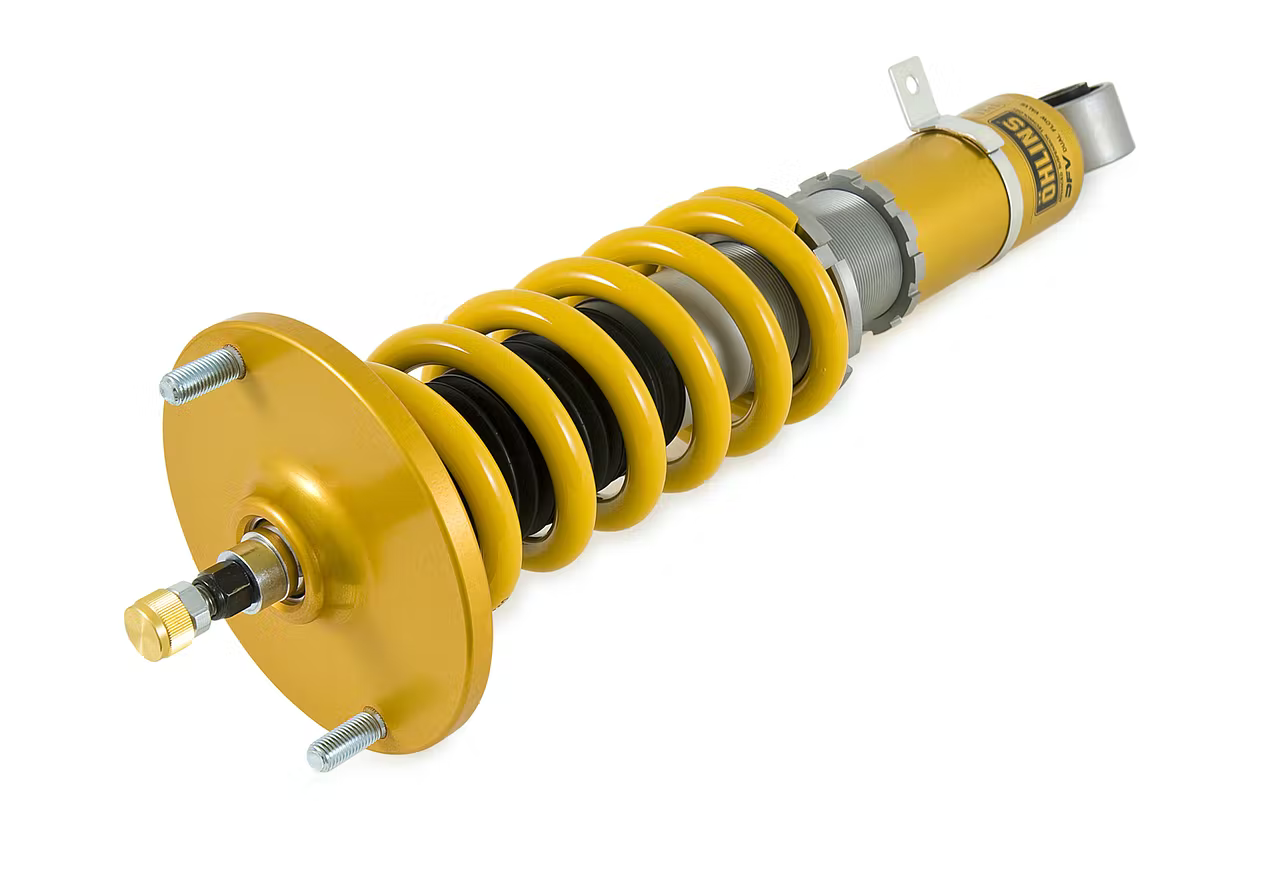

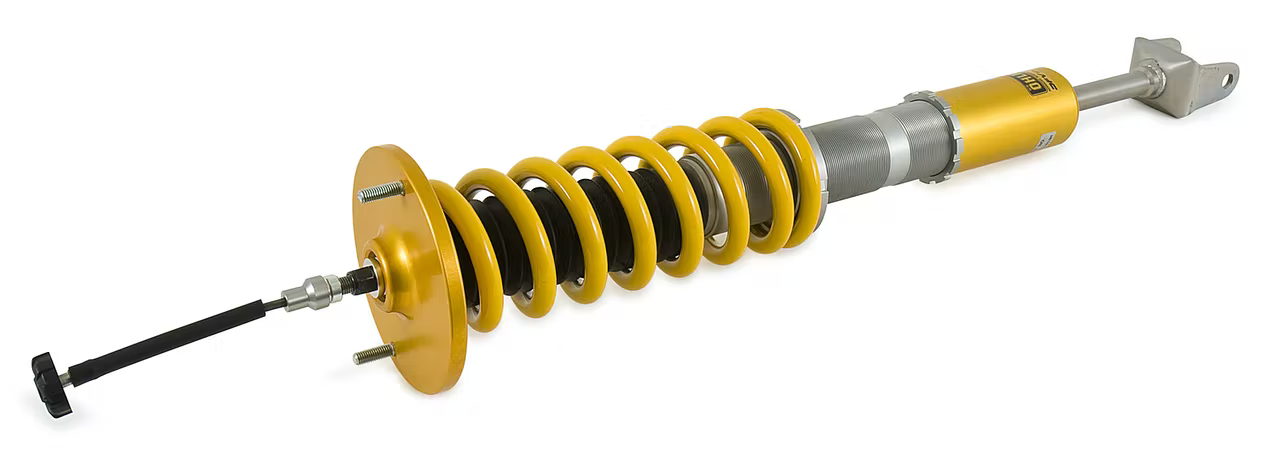

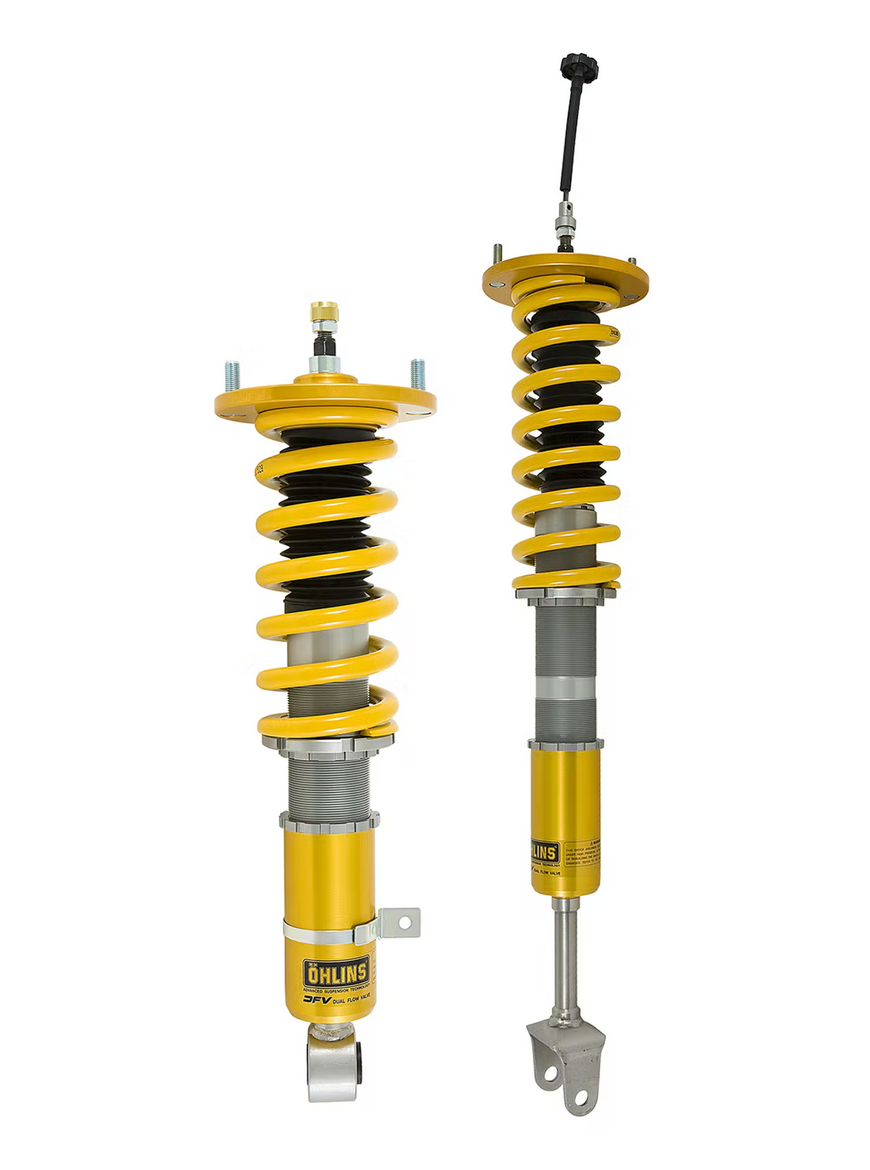

Öhlins R&T Coilovers – Nissan Skyline GT-R R33 / R34

Built on over 40 years of motorsport suspension innovation, the Öhlins Road & Track Coilover Kit is designed to bring your Nissan GT-R R33 or R34 to life on both street and circuit. Experience sharper response, more control, and improved chassis feedback—all while retaining everyday comfort.

DFV Technology Explained

Öhlins' patented Dual Flow Valve (DFV) system ensures controlled damping in both compression and rebound, improving grip, balance, and ride quality. Whether you're pushing through corners or navigating city streets, a simple turn of the single adjuster knob shifts the dampers between road and race mode.

Key Features

• DFV (Dual Flow Valve) for consistent dynamic performance

• Single adjuster for compression and rebound damping

• Rebuildable damper design

• Separate ride height and spring preload adjustability

• ISO 9227 corrosion-tested coating

• Backed by a 2-year limited warranty

Front Suspension Details

• Conventional monotube shock absorber

• Separate ride height and spring preload adjustment

• Lowering range: approx. 15–45 mm from standard

• Spring rate: 90 N/mm (≈ 9.2 kg/mm)

• Includes non-adjustable aluminium top mounts

Rear Suspension Details

• Conventional monotube shock absorber

• Separate ride height and spring preload adjustment

• Lowering range: approx. 15–45 mm from standard

• Spring rate: 80 N/mm (≈ 8.2 kg/mm)

• Includes non-adjustable aluminium top mounts

Kit Contents

• Coilover suspension system with springs and mounting hardware

• C-Spanner for preload adjustment

• Öhlins owner's manual and installation guide

• Sticker set

Documents

• Owners Manual Öhlins Automotive Road & Track (English)

• Mounting Instruction Öhlins Automotive NIS MI10 (English)

Vehicle Fitment

• 1993–1998 Nissan Skyline GT-R (R33)

• 1998–2002 Nissan Skyline GT-R (R34)
