Mishimoto Baffled Oil Catch Can Kit Subaru BRZ (ZD8) / Toyota GR86 (ZN8)

Mishimoto Baffled Oil Catch Can Kit - Subaru BRZ (ZD8) / Toyota GR86 (ZN8)

Mishimoto's baffled oil catch can kit tackles blow-by before it fouls your intake tract. Built for the FA24 engine's combined direct and port injection setup, it captures oil, fuel and water vapour that would otherwise condense on sensors or find its way back into the cylinders, helping guard against knock and power loss in the Subaru BRZ and Toyota GR86.

This listing covers the Subaru BRZ (ZD8) and Toyota GR86 (ZN8), SKU MMBCC-BRZ-22.

Important: this kit is engineered for left hand drive vehicles only. It will not fit right hand drive BRZ or GR86 models due to interference with the brake lines. Confirm your vehicle's drive configuration before ordering.

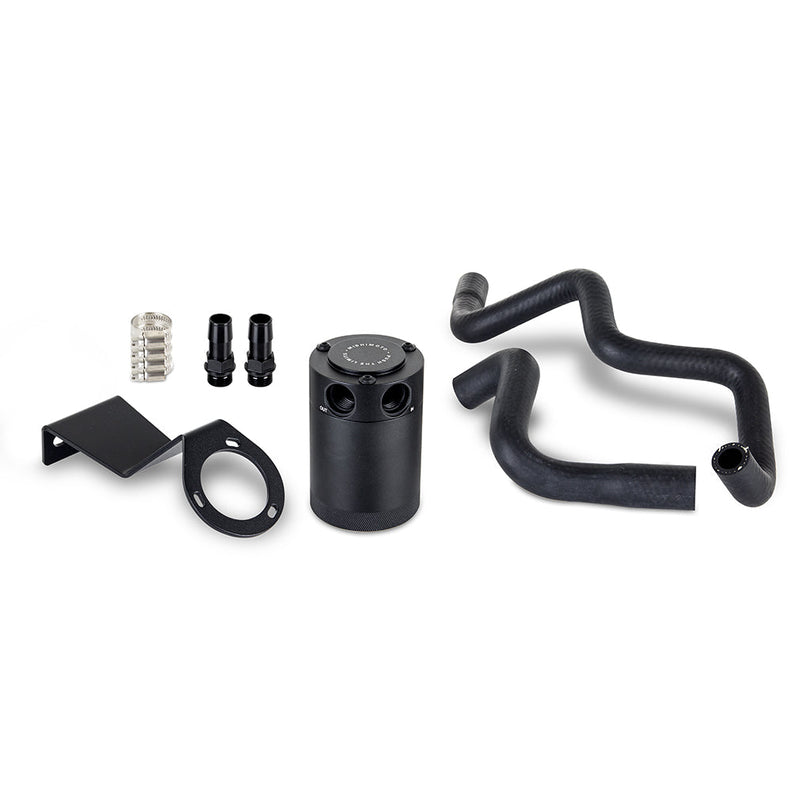

Kit Contents and Specifications

• Compact 2-port baffled oil catch can with bronze filter and internal air turbulators
• 3mm thick steel mounting bracket to isolate the can from engine vibration
• Molded hoses for a direct fit connection between the catch can, engine and intake manifold
• Two O-ring sealed, CNC machined aluminium fittings for a leak free install
• Worm gear clamps rated to 2.5 Nm recommended torque (18 to 27 in-lb / 2 to 3 Nm range, do not exceed 3 Nm)
• Mishimoto recommends checking catch can contents every 1600 km until a baseline is established
• Backed by the Mishimoto Lifetime Warranty

Vehicle compatibility, part numbers and fitment notes are provided in the tabs above. Please confirm your vehicle's drive configuration and model year before ordering.

Not sure if this kit suits your build? Contact our team at sales@chicaneaustralia.com.au for expert advice.
