GrimmSpeed V-Bars - Subaru BRZ (ZC6/ZD8) / Toyota 86 (ZN6) / GR86 (ZN8)

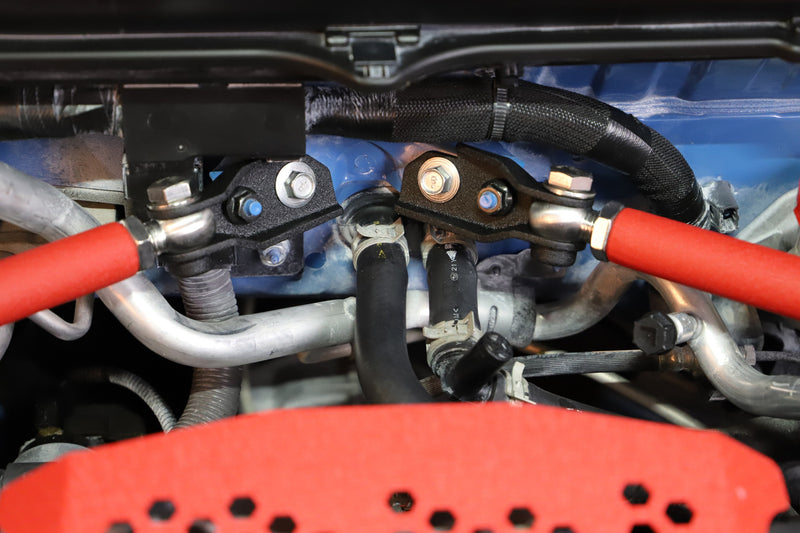

GrimmSpeed built its name on chassis and engine hardware that actually holds up to track abuse, and the V-Bars continue that approach. Designed to tie the strut towers directly into the firewall, they address the flex left behind by the factory bars and work alongside GrimmSpeed's V2 Strut Bar for a more connected front end.
This listing covers the Subaru BRZ (ZC6/ZD8), Toyota 86 (ZN6) and Toyota GR86 (ZN8). Available in black or red wrinkle powder coat via the variant selector, SKU GRM.1100.1.BLK / GRM.1100.1.RED.
Specifications
- 1 inch OD DOM mild steel tubing, 0.049 inch wall thickness
- 10-gauge (3.416mm) CNC-cut steel brackets
- Adjustable centre section with rod ends and machined eyelet bolts
- Dual shear mounting design at each connection point
- Stainless steel hardware included
- Wrinkle powder coat finish, black or red
Vehicle compatibility and fitment notes are provided in the tabs above. Please confirm your vehicle's year and configuration before ordering.
Not sure if this kit suits your build? Contact our team at sales@chicaneaustralia.com.au for expert advice.
Vehicle Compatibility
| Make | Model | Chassis | Engine |
|---|---|---|---|
| Subaru | BRZ | ZC6 | - |
| Subaru | BRZ | ZD8 | - |
| Toyota | 86 | ZN6 | - |
| Toyota | GR86 | ZN8 | - |
Technical Specifications
| Spec | Value |
|---|---|
| Tube Material | DOM mild steel tubing |
| Tube Outer Diameter | 25.4 mm (1 in) |
| Tube Wall Thickness | 1.24 mm (0.049 in) |
| Bracket Material | CNC-cut 10-gauge steel |
| Bracket Thickness | 3.416 mm |
| Design | Adjustable bar with machined eyelet bolts and rod ends |
| Joint Type | Dual shear (double shear) mounting at connection points |
| Finish | Wrinkle powder coat (available in black or red) |
| Hardware | Stainless steel hardware included |
