AEM X-Series Oil Pressure Gauge Kit Universal 0-150 PSI/10 BAR

AEM X-Series Oil Pressure Gauge Kit - Universal - 0-150 PSI/10 BAR

AEM's X-Series range brings motorsport grade instrumentation to any build, and the 30-0307 Oil Pressure Gauge is built for owners who want accurate, easy to read data without digging through a laptop or scan tool. It combines a bright centre LED digital readout with a sweeping LED needle, giving you both a precise number and an at a glance reference in one compact housing.

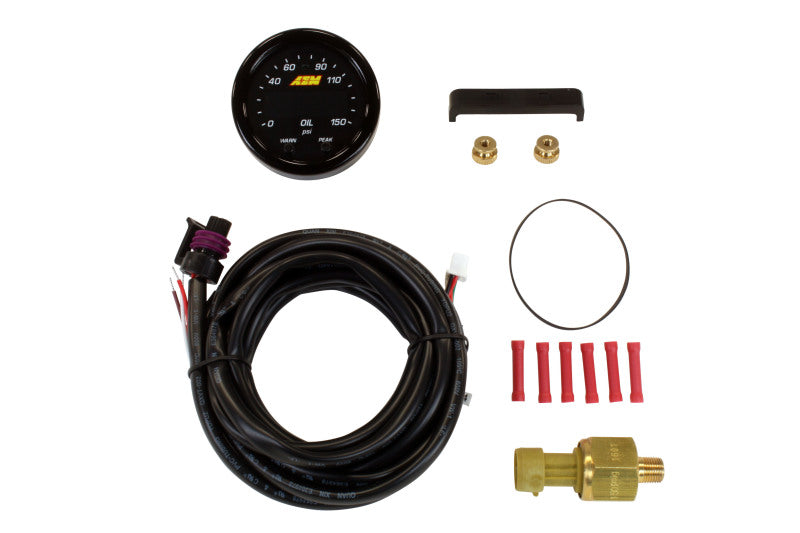

This listing covers the Universal 0-150 PSI/10 BAR oil pressure gauge, suited to any high performance vehicle where a standard 52mm gauge pod is fitted. The gauge ships with a black bezel and black faceplate as standard; a separate accessory kit is available if you prefer the silver bezel and white faceplate option. Each faceplate is double sided, so switching between PSI and BAR display is a simple calibration using the two buttons on the gauge face.

Key Features

• Centre LED digital display, 87% larger than AEM's original digital gauges
• Sweeping green LED needle for quick visual reference
• 33% larger overall gauge face for improved readability
• Standard 52mm (2-1/16 in) housing diameter for common gauge pods
• Slim single board design, under 21mm (0.825 in) overall depth with a 5mm (0.200 in) cup depth
• Two button faceplate controls for peak/recall, PSI/BAR switching and user set warning thresholds
• AEMnet CAN-bus enabled for daisy chaining with Infinity ECU, Series 2 EMS, AQ-1 Data Logger or third party AEMnet devices
• 0-5V analogue output for data loggers and engine management systems
• Range: 0-150 PSI / 0-10 BAR

Vehicle compatibility, wiring details, and fitment notes are provided in the tabs above. Please confirm your gauge pod size and mounting depth before ordering.

Not sure if this gauge suits your build? Contact our team at sales@chicaneaustralia.com.au for expert advice.
