AEM Universal High Flow -10 AN Inline Fuel Filter - Universal - Black
AEM builds this inline fuel filter for high flow fuel systems that need filtration without a pressure penalty. It's aimed at builds running -10 AN fuel lines where a restrictive filter would choke the system, whether that's a turbocharged street car or a dedicated track build. SKU 25-201BK.
This listing covers the Universal -10 AN Inline Fuel Filter in black, suitable for any vehicle or fuel system running -10 AN fittings. It's not vehicle specific, so fitment comes down to matching your existing -10 AN fuel line rather than a particular make or model.
Specifications
- Fitting size: -10 AN female, machined into both end caps
- Flow rate: up to 46.6 L/min (12.32 gpm) at 310 kPa (45 PSI)
- Flow rate: up to 9.95 L/min (2.63 gpm) at 41 kPa (6 PSI)
- Filtration: 7 micron replacement cartridge, commonly available
- Housing diameter: 50.8mm (2 in) OD for easy mounting
- Sealing: Viton O-rings and gaskets, compatible with petrol, alcohol and blended fuels

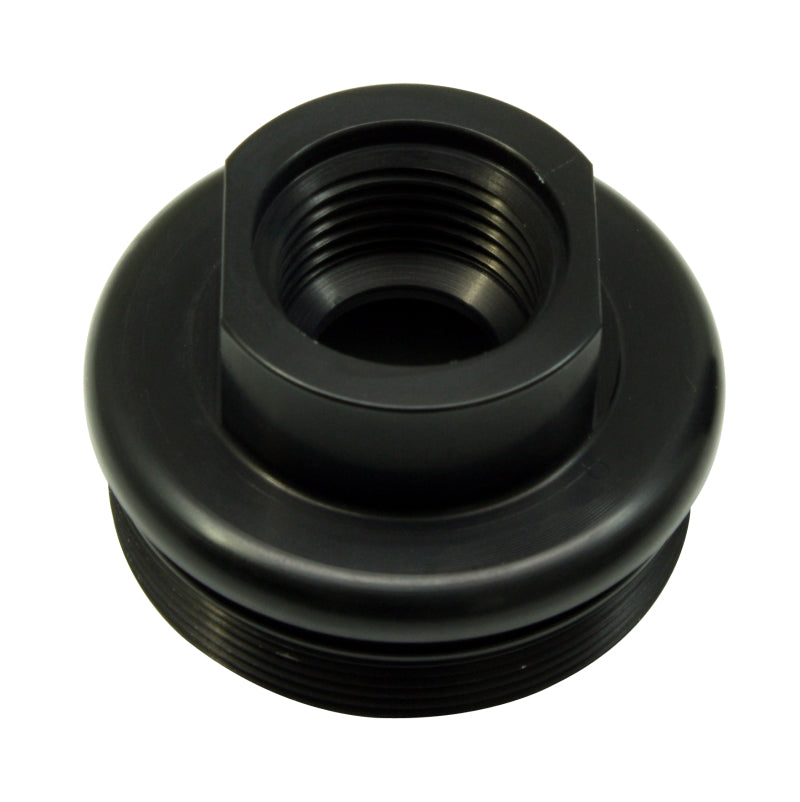

- Machined O-ring receiver grooves on end caps to prevent leaks
- Finish: black
Vehicle compatibility, OEM part numbers, and fitment notes are provided in the tabs above. Please confirm your fuel line size and fitting configuration before ordering.
Not sure if this filter suits your build? Contact our team at sales@chicaneaustralia.com.au for expert advice.
Vehicle Compatibility
Universal fitment — verify dimensions before ordering.
Technical Specifications
| Spec | Value |
|---|---|
| Fitting Type | -10 AN female (both end caps) |
| Outer Diameter | 50.8 mm (2 in) |
| Flow Rate (High Pressure) | 46.6 L/min (12.32 gpm) @ 310 kPa (45 PSI) |
| Flow Rate (Low Pressure) | 10.0 L/min (2.63 gpm) @ 41.4 kPa (6 PSI) |
| Filtration Rating | 7 microns |
| Seal/Gasket Material | Viton (compatible with gasoline, alcohol, and gasoline/alcohol blends) |
| Sealing Design | Machined O-ring receiver grooves on end caps |
| Filter Cartridge | Replaceable |
No instructions available for this product.
