AEM High Capacity Adjustable Fuel Pressure Regulator Universal Black

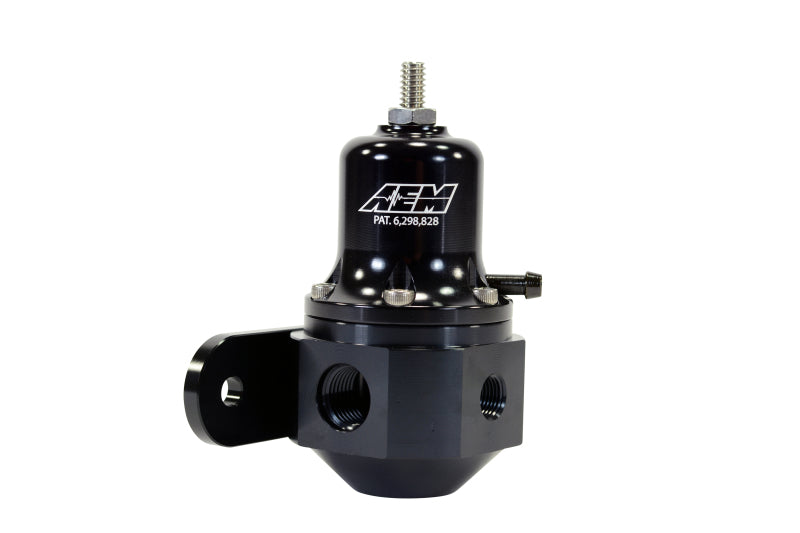

AEM High Capacity Adjustable Fuel Pressure Regulator - Universal - Black

AEM builds its fuel system components for racers who can't afford pressure drop under boost, and this regulator is no exception. The High Capacity Adjustable Fuel Pressure Regulator (SKU 25-305BK) is engineered for high output engines and racecars that need a large volume of fuel delivered reliably, with a wide adjustment range and a return orifice sized for high flow pumps.

This listing covers the universal fitment black anodised version of the regulator, suited to any engine bay running an aftermarket -6 AN fuel system. It's a common choice for turbocharged and supercharged builds where stock or lower capacity regulators can't keep up with demand.

Note: the barb fitting for the outlet port is not included and is sold separately under PN 25-390.

Specifications

• Finish: black anodised aluminium
• Inlet: 2 x -6 AN (9/16-18)
• Outlet: -6 AN (9/16-18)
• Gauge port: 1/8 NPT for fuel pressure gauge or sensor
• Vacuum hose fitting: 5mm (3/16 in)
• Adjustable pressure range: approximately 276-896 kPa (40-130 PSI)
• 1:1 rising rate for boosted applications
• Alcohol and race fuel compatible
• Includes universal mounting bracket and four 10-32 x 1/2 in screws

Vehicle compatibility, OEM part numbers, and fitment notes are provided in the tabs above. As a universal fitting component, please confirm your fuel line sizing and gauge/sensor requirements before ordering.

Not sure if this regulator suits your build? Contact our team at sales@chicaneaustralia.com.au for expert advice.
