Link Ethanol Content Sensor - Universal

Running flex fuel means your ECU needs to know exactly what it's burning, and that's where the Link Ethanol Content Sensor (ECS) comes in. Link ECUs are built around precise, real time tuning, and this sensor gives the ECU live data on the ethanol to petrol ratio so fuelling and ignition can adjust on the fly as blend ratios change at the bowser.

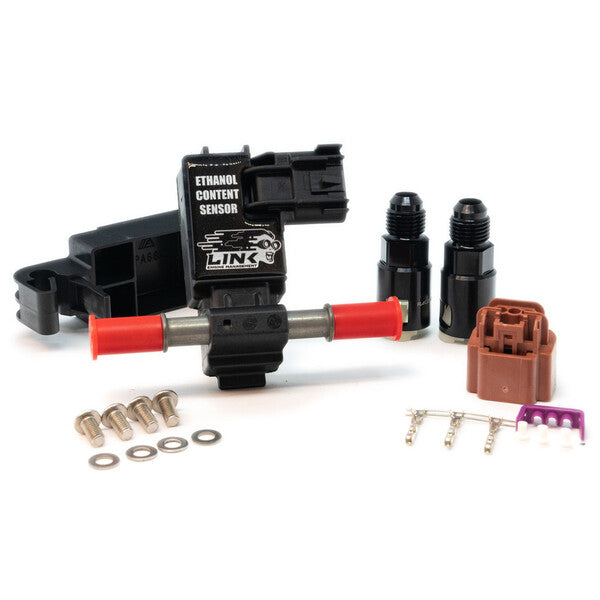

This listing covers the Link Ethanol Content Sensor, a universal fitment component compatible with all current Link Wire-In and Plugin ECUs. It's a single default variant (SKU: ECS) with no vehicle specific versions to choose between.

Specifications

• Measures ethanol to petrol ratio for flex fuel applications
• Uses 1 digital input on the ECU
• Fits to the fuel return line, between the fuel pressure regulator and fuel tank
• AN-6 fittings
• Pinout (left to right into connector): 1. Vcc (+12V supply), 2. GND (ground), 3. Vout (digital signal out)
• Includes plug and pin kit

Vehicle compatibility, OEM part numbers, and fitment notes are provided in the tabs above. Please confirm your ECU model and wiring configuration before ordering.

Not sure if this sensor suits your build? Contact our team at sales@chicaneaustralia.com.au for expert advice.
