Radium Engineering V2 FPD-XR Extended Range Fuel Pulse Damper Universal 8AN ORB

Radium V2 FPD-XR Extended Range Fuel Pulse Damper, 8AN ORB

Fuel injectors create pressure pulses every time they open and close, and at high flow rates those pulses are strong enough to cause idle surge, lean AFR spikes, and tuning headaches that are nearly impossible to calibrate away. The Radium Engineering V2 FPD-XR absorbs those oscillations and stabilises fuel rail pressure across the full RPM range. Designed and manufactured in the USA, Radium FPDs are trusted by professional motorsport teams and serious enthusiasts worldwide — and are exclusively distributed in Australia by Coore.

This listing covers the 20-0777 V2 FPD-XR with 8AN ORB male threads. This is the extended range damper (black anodised top) suited to high-pressure fuel systems with a base static pressure of 40–105 psi. If your base static pressure falls within 40–70 psi, the shorter FPD-R (20-0776) may be more appropriate for space-constrained installations.

Important: The 40–105 psi range refers to base static fuel pressure only — measured with the pump running and no vacuum line connected to the regulator. Dynamic pressure rises produced by a rising rate fuel pressure regulator under boost are acceptable beyond this range, provided base static pressure is set within the specified window and the vacuum/boost reference line is connected.

Key Features

• Extended base static pressure range: 40–105 psi — suits a wide variety of high-pressure and boosted fuel systems
• Vacuum/boost reference port — keeps damper performance correct under boost when used with a rising rate FPR
• V2 design: 360° swivel vacuum port can be clocked after installation for easy hose routing in any orientation
• 8AN ORB male threads with Viton O-ring seal — compatible with standard AN fuel rail fittings
• Mounts at any angle including upside down — no restriction on fuel rail orientation
• E85, alcohol, and all common fuel types compatible
• Anodised and laser engraved aluminium housing — permanent identification, premium finish
• Stainless steel hardware throughout

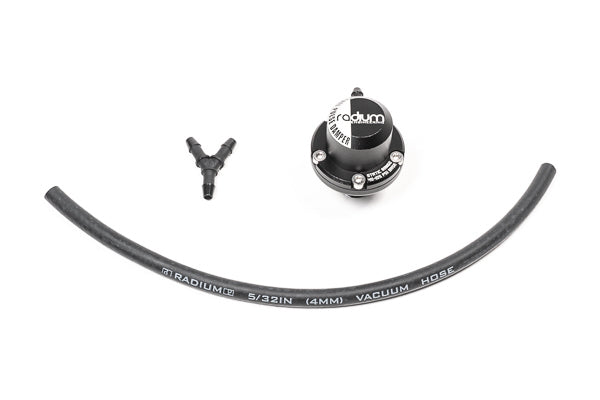

• Kit includes: anodised aluminium body and black top, stainless hardware, 4mm ID rubber vacuum hose, and vacuum hose Y-fitting

Full installation instructions are available for download from Radium Engineering. Best results are achieved when mounted directly on the fuel rail. Stocked in Sydney for fast Australian delivery.

Not sure if this damper suits your build? Contact our team at sales@chicaneaustralia.com.au for expert advice.
