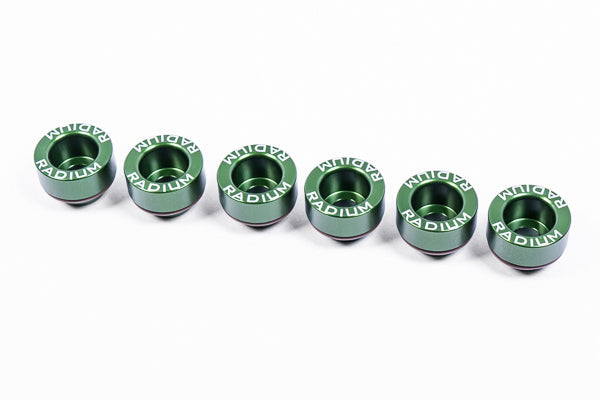

Radium Engineering Toyota Injector Seats 2JZ-GTE / 1JZ-GTE / 3S-GTE 14mm Bore (Single)

Radium Engineering Toyota Injector Seats - 2JZ-GTE / 1JZ-GTE / 3S-GTE - 14mm Bore (Single)

Radium Engineering produces precision fuel system components trusted by tuners and race teams globally, and these injector seats are a direct example of that standard. CNC-machined from billet 6061 aluminium and bright-dip anodised for durability, they are the same seats Radium uses in their own fuel rail kits — purpose-built for converting OEM side-feed setups to top-feed injector configurations on popular Toyota engines.

This listing covers a single injector seat (SKU: 20-0216) compatible with the Toyota 2JZ-GTE, 1JZ-GTE, and 3S-GTE engines, as well as other Toyota engines sharing a 22mm injector counterbore. Order one seat per injector position.

Note: Sold individually. Confirm your engine's injector counterbore dimension is 22mm before ordering. For other Toyota applications not listed, verify fitment prior to purchase.

Key Features

• CNC-machined 6061 billet aluminium construction
• Bright-dip anodised finish with laser etched Radium logo
• 14mm lower O-ring bore — suits a wide range of aftermarket top-feed injectors
• Seals into 22mm machined injector counterbore in the intake manifold
• Viton O-ring included — compatible with pump petrol, E85, methanol, and exotic fuels
• Identical seats to those used in Radium's own fuel rail kits
• Manufactured in the USA to motorsport-grade tolerances

Fitment compatibility, injector specifications, and application notes are provided in the tabs above. Confirm your engine variant and injector counterbore size before ordering.

Not sure if this seat suits your build? Contact our team at sales@chicaneaustralia.com.au for expert advice.
